Advanced Zmde Automated CNC Drilling Machine for Steel Plates

Product Description

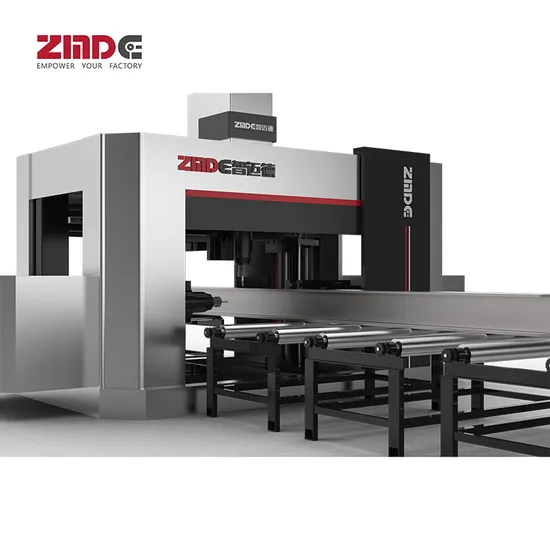

ZMDE Automated 3D CNC Drilling for Steel Plates

Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

The device offers unparalleled precision, drilling perfect holes on three sides of an H-beam steel simultaneously, supported by 7 CNC axes. Utilizing CAD/CAM for direct processing program generation, it accommodates a maximum H-beam section size of 1000×500mm (belly height × wing width) and a drilling diameter of up to 33.5mm. The sophisticated control system integrates computer numerical control, AC servo system, photoelectric encoder, and PLC. Simply input the workpiece size to automatically generate the machining program, which can be stored, recalled, displayed, and processed by part number with ease.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Founded in 2013, ZMDE Co., Ltd. stands at the forefront of high-tech enterprises, specializing in the research, development, manufacturing, sales, and service of intelligent assembly building equipment. Recognized as a national 'Small Giant' enterprise, our core industries encompass steel structure assembly building intelligent industrial mother machines and industry IoT withadvanced intelligent control systems.
Located in Lingang New Area, Pudong New District, Shanghai, our headquarters spans 32,000 square meters and houses the Research Institute of Artificial Intelligence for Assembled Buildings. This hub is dedicated to management and R&D for cutting-edge technologies in Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and Industrial Internet of Things (IoT).
Our Shandong base, situated in Weicheng District, Weifang City, focuses on the R&D and production of intelligent industrial mother machines for steel beams and walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients.2. Q: Could you specify the payment terms you accept?A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer).3. Q: What is the typical delivery time for your orders?A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently.4. Q: What is the duration of your warranty period?A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits.5. Q: Do you offer ODM/OEM services?A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.
