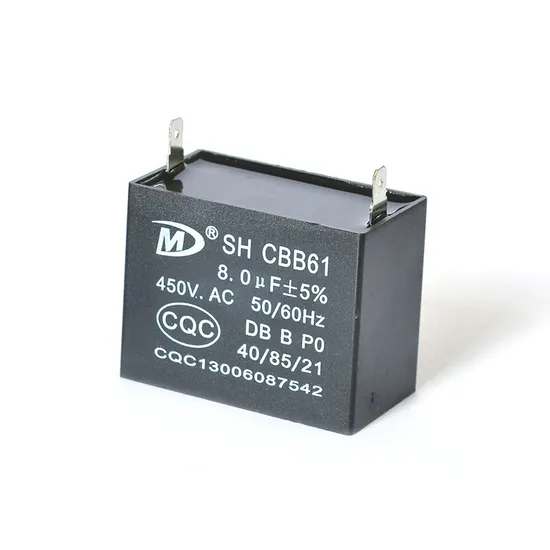

Factory Cbb61 Start Capacitor 450V Fan Capacitor
Basic Info.
Model NO.
CBB61
Packaging Type
Surface Mount
Capacitance
1UF~80UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Usage
Starting
Tuning
Polystyrene Capacitor
Filter
Film
Electronic Parts
Capacitor
Motor Parts
Capacitor
Air Conditioner Parts
Capacitor
Fan Parts
Capacitor
Film Capacitor
Capacitor
Transport Package
Carton
Specification
CBB61
Trademark
SMILER
Origin
Guangdong, China (Mainland)
Production Capacity
50, 000 PCS Per Day
Packaging & Delivery
Package Size
4.00cm * 2.00cm * 3.00cm
Package Gross Weight
0.030kg
Product Description
| Product Details | |
| Model Number | CBB61 with terminals, CBB61 with wires |
| Type | Polyester Film Capacitor, Polypropylene film capacitor |
| Place of Origin | Guangdong, China |
| Brand Name | SMILER |
| Supplier Type | Original manufacturer, ODM |
| Capacitance | 0.1uf~100uf |
| Cross Reference | CBB61 cable type, CBB61 capacitor |
| Media Available | datasheet, Photo |
| Tolerance | +_5%(J),+_10%(K) |
| Package Type | plastic |
| Rated Voltage | 100VAC~630VAC(50-60Hz) |
| Operating Temperature | -40°--85° |
| Brand | CBB61 |
| Specification | wires or terminals type |
| Voltage - Rated | 100VAC~630VAC(50-60Hz) |
| ESR (Equivalent Series Resistance) | 4000(mΩ) |
| Applications | motor, fan, air conditioner etc. |
| Impedance | 4000(mΩ) |
| Circuit Type | Bussed |
| Current - Leakage | CBB61-S3 |
| Voltage - Breakdown | Not Applicable |
| Capacitance Range | 0-100uf |
| Application | motor, fan, air conditioner etc. |
| Safety approvals | CQC/U-L/VDE/TUV/CE |
| Approval standard | GB/T3667,U-L810,EN60252-1 |
| Climatic category | 25/70/21,25/85/21 |
| Rated voltage | 250VAC~500VAC(50-60Hz) |
| Capacitance tolerance | +_5%(J),+_10%(K) |
| Between terminals | 2*Un(VAC)/3s(CQC,VDE,TUV),1.5*Un(VAC)/3s(U/L) |
| Insulation Resistance(20) | between terminals and case>=5000/C(100VDC,3s) |
| | | | | | |
| Capacitance(uf) | 250V | 300V | 400V | 450V | 500V |
| | L/W/H | L/W/H | L/W/H | L/W/H | L/W/H |
| 0.8UF | 32*10*20 | 32*10*20 | 32*10*20 | 32*11*22 | 36*11*22 |
| 1.0UF | 32*10*20 | 32*11*22 | 32*11*22 | 36*10*20 | 36*13*23 |
| 1.2UF | 32*10*20 | 32*11*22 | 36*10*20 | 36*11*22 | 37*13*24 |
| 1.5UF | 36*10*20 | 36*11*22 | 36*11*22 | 37*13*24 | 37*15*27 |
| 2.5UF | 36*10*20 | 36*13*23 | 36*13*23 | 38*15*25 | 38*17*28 |
| 3.0UF | 36*11*22 | 37*13*24 | 38*15*25 | 38*17*28 | 38*19*31 |
| 3.5UF | 36*11*22 | 38*15*25 | 38*17*28 | 38*18*29 | 47*19*31 |
| 4.0UF | 36*13*23 | 37*15*27 | 38*17*28 | 38*19*31 | 47*19*33 |
| 5.0UF | 37*13*24 | 38*17*28 | 47*17*28 | 47*19*33 | 47*25*35 |
| 6.0UF | 38*15*25 | 38*18*29 | 48*19*31 | 47*20*35 | 47*27*37 |
| 8.0UF | 38*17*28 | 47*17*31 | 47*20*35 | 47*25*35 | 47*30*43 |
Fan capacitors use high-pressure and high-temperature resistant materials. They are small in shape and flexible in installation. The lead-out can also be changed according to different application scenarios. With high safety and long service life, we can design dimensions and standards according to customer's use and installation requirements
CBB61 starting capacitor is a kind of machine which is suitable for starting and running of single-phase motor with 50HZ AC power supply, and also can speed control the motor. It is an important supporting part of electric fan, range hood, air conditioning fan, toaster and so on.
