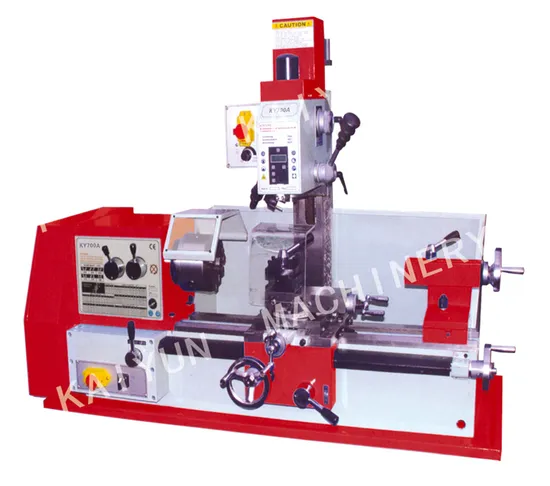

High-Efficiency Multi Purpose Combination Machine (KY450A/KY700A)
| US$1,176.00-1,485.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
KY450A/KY700A
Certification
CE
Automation
Manual
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Color
Red
Motor
500W
Net Weight
180/200kg
Spindle Stroke
50mm
Spindle Speed Range
115-1620rpm
Height of Center
125mm
Taper of Spindle Nose
Mt4/27mm
Range of Longitudinal Feed
0.05-0.1mm
Transport Package
Plywood Case
Specification
1270/1510*670*1100mm
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
| Specification | |
| Model No. | KY450A/KY700A |
| Height of center | 125mm |
| Distance between two centers | 450mm/700mm |
| Max.length cutting | 420mm/660mm |
| Max.Wwing ocer bed | 250mm |
| Max.swing over carriage | 130mm |
| Taper of spindle nose | MT4/27mm |
| Spindle speed range | 115-1620rpm |
| Metric thread cutting | 0.2-3.5mm(10 kinds) |
| Inch thread cutting | 8-56/1(20 kinds) |
| Moulder thread cutting | 0.1-1.25mm(10 kinds) |
| Range of longitudinal feed | 0.05-0.1mm |
| Drilling & Milling | |
| Taper of spindle bore | MT2 |
| Spindle stroke | 50mm |
| Range of spindle speeds | 50-2250rpm |
| Max.distance spindle to table | 280mm |
| Max.distance spindle to column | 170mm |
| Head tilt | ±90° |
| Motor | 500W |
| Packing size | 1270/1510*670*1100mm |
| Net weight | 180/200kg |
| Standard accessories | |
| Splash guard | 1 pc |
| Chip tray | 1 pc |
| Drawbar | 1 pc |
| Arbor | 1 pc |
| Toolbox & tools | 1 set |
| Optional accessories | |
| 4-jaw chuck | 1 set |
| Backplate | 1 pc |
| Follow rest | 1 pc |
| Steady rest | 1 pc |
| Face plate | 1 pc |
| Collet chuck | 1 set |
| Turning tools | 1 pc |
FEATURES
Economical widely useful hobby lathe. V-way bed is precision ground. Spindle is supported by precision taperd bearing. Gear head enables to quickly change speeds. Power lingitudinal feed allows threading. Adjustable gids for slidways. Change gears has large feed and threading functions. Tailstock may be offset for turning tapers. Variable speed mill head Mill head can be tilt ±90°.
