Static Free Transparent Silver Gray Static Shielding Bags with RoHS Reach SGS Report

Product Description

Recommend moisture-proof packaging solutions for you~

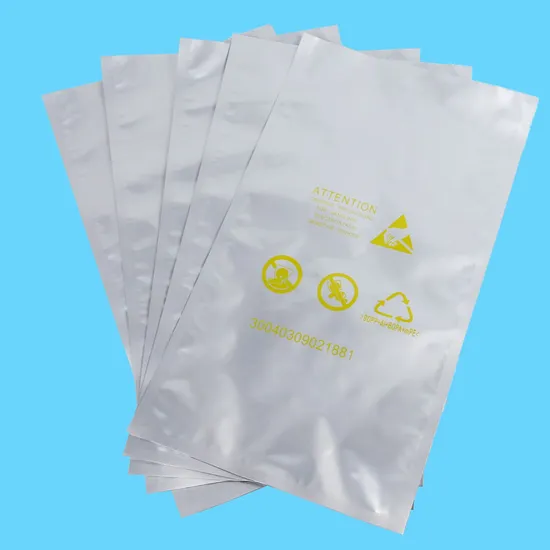

Moisture-proof vacuum bag, also known as Aluminum foil bag, Aluminum-plastic composite vacuum bag, vacuum bag, moisture-proof bag, using imported high quality raw materials formed a production by automatic assembly line, the bag with a standard of moisture-proof logo, has six functions of anti-static, resistance of the electromagnetic interference and moisture proof, high barrier, with good puncture ability of water proof and oxygen proof. The bag should passed the GB & ASTM test and satisfied the strictest environmental protection standard of packing materials in EU and North America. It suitable for the electronics packing that has the requirement of moisture proof. Surface resistance is 108-1010Ω, static release time is less than 0.05 seconds. Theory:
Moisture-proof vacuum bag can protect electrostatic sensitive components from potential damage. Its special four-layer structure can create such effect as an inductive cover to separate the goods inside the static field. Besides, the innermost layer is made up of polyethylene that can prevent the static inside the bag, this heat-sealing bag is transparent, so that we can identify the internal items from the outside.
Features:
With excellent performance of anti-static, moisture proof and electrostatic shielding, high mechanization degree and heat sealability.
The size of product is not restricted, can be customized the packing bag according to customer's requirements of different size and style. There are
many kinds of aluminum-plastic composite packaging like flat bags, three-dimensional bags, accordion bags,etc. We will provide bags according
to customer's requirements of product's shape. In strict accordance with the standards of GB/T 1037-1988, GB/T 1038-2000, MIL-B-81705-C for
the production.
Material:

Thickness	140±10μm (Total thickness of layer of glue and static is 5-10μm) Z
Physical properties	Material	Parameters
Lay 1	Polyester (PET)	12μm
Lay 2	Aluminum foil (AL)	7μm
Lay 3	Nylon (NY)	15μm
Lay 4	Polyethylene (PE)	100μm

Anti-static & moisture proof bag technical specification:

No.	Test item	Technical requirements	Test standard
	Performance of Anti-static	1x105Ω<resistance of outer surface<1x109Ω 1x105Ω<resistance of internal surface<1x1011Ω Metal layer<1x100Ω	ANSI/ESD STM 11.1
		Friction voltage: <100V	ESD ADV 11.2
2	Electrostatic shielding	Remanent shield voltage: <20V	EIA 541
3	EMI Attenuation	>60 dB	MIL-PRF-81705
4	Life time	After using 1 year, still meet the requirements of No. 2/3/4	MIL-PRF-81705
5	Structure	PET/ AL/ NY/ PE
6	Thickness	> 0.14 mm
7	Size	Refer to drawing's marks
8	Heat-seal strength	> 30N/ 15mm
9	Tensile strength (vertical and horizontal direction)	Vertical >75N/ 15mm Horizontal >85N/ 15mm
10	Heat-seal condition	Temperature: 300-400F Time: 0.6-4.5 seconds Pressure: 30-70 PSI
11	Peel strength	>3.0N/ 15mm
12	Puncture resistance	>100N	MIL-STD-3010
13	Water vapor permeance	J-STD-033 0.002mg/100 in2 /24h	ASTM F 1249-13

Measure
Applications:
Mainly applicable to all kinds of packing of PC Board, electronic components, modems, CD-Rom, electronic industry component protection, Fiber
optics components, Telecommunications and radio communications, Medical industry, disk drive and automative manufacturing etc .
