Agriultural Disc Plough 3 Disks Fish Plow Tube Disc Plow 4 Disks Disc Plow Plough

Product Description

Product Description

SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD

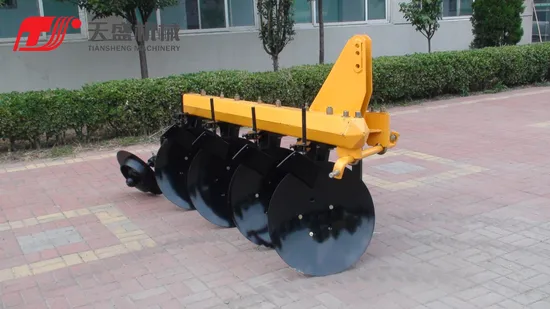

Farm tractor 3 point hitch 1LTS series Disc Plough
1. 1LTS disc plough is mounted with four wheel tractor,as in conformity with the current agriculture conditions, are being produced with 2-3-4-5 rows.
2.It furrows soil when patches rotate, mainly applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc.
3.Effectively avoid the plough disk wrapped by grass, not obstruction, can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality work, easy to adjust, simple to use, durable, etc.
4.The disc ploughs are used to open the new fields and to process the stony areas.
5.Disc plough moldboard plow blade timely scraping dirt on the disc blade,disc plough to keep clean.
6. Farm tractor plough 3 point hitch disc pllough with YTO tractor is specially designed , manufactured and borrowed according the features of foreign disc plough, it is Fully-suspended with four wheel tractor. And the discs are rotary motion when tuning the soil. This mounted disk plow is especially suitable for cultivation in the land with weeds, stems and frictional soil with bricks.

Model	Unit	1LTS-2	1LTS-3	1LTS-4	1LTS-5
Working width	m	0.6	0.9	1.2	1.5
Overall weight	kg	350	400	470	560
No. of discs	pcs	2	3	4	5
Matched power	hp	45-55	60-70	80-90	100-120
Linkage		Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted
Disc diameter	mm	660	660	660	660
Working depth	mm	150-300	150-300	150-300	150-300

Company Profile





After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.

Other products

Due to the limited number of pictures uploaded,we have many products that are not on display.
All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.
