Nanyang Mj3215b 60-Inch Portable Band Sawmill Machine China Manufacturing Woodworking Machinery Band Saw with Mj329/4D 60-Inch Log Carriage

Product Description

NANYANG MJ3215B 60-inch Portable Band Sawmill Machine China Manufacturing Woodworking Machinery Band Saw With MJ329/4D 60-inch Log Carriage
Product Description
Vertical Wood Saw Machine With Automatic Carriage
This machine tool is mainly used for longitudinal sectioning large and medium-diameter logs or wood re-sawing. It is suitable for longitudinal sectioning of large-diameter logs with a diameter of Φ500mm-1500mm into plates and square timbers.
Used with Carriage, it expands the processing range and has high production efficiency and stable work. It is an ideal product for wood processing enterprises to process large logs!
Product Parameters
MJ3215B Wood Band Saw Technical Parameters

Item	Specification
Saw Wheel Diameter	φ1500mm
Saw Wheel Width	180mm
Saw Wheel Speed	530 R/min
Maximum Cutting dismeter	φ1500mm
Motor Power	75Kw
Total Power	78.7KW
Saw Blade Size	10500*150*1.25mm
Dimensions (LxWxH)	1870X1650X4870mm
Weight	6200Kgs

MJ329/4D Automatic Carriage Technical parameters

Item	MJ329/4DE-GF (With automatic rolling device)	MJ329/4DE-G	MJ329/4DE3-G
Max. sawing diameter	1500mm	1500mm	1500mm
Max, sawing length	7000mm(Customizable)	7000mm(Customizable)	4000mm(Customizable)
Max. Forward speed	66m/min	66m/min	66m/min
Max. BackWard speed	92m/min	92m/min	92m/min
Footage speed	17mm/s	17mm/s	17mm/s
Effective stroke of timber-blocking pile	1400mm	1400mm	1400mm
Quantity of timber blocking pile	4Nos.	4Nos.	3Nos.
Traction mode	Wire rope	Wire rope	Wire rope
Power of hydraulic system in rolling	5.5kW
Working pressure of the hydraulic system in feeding	7Mpa
Hydraulic oil label of hydraulic sister	46#
Track length	21000mm(Customizable)	21000mm(Customizable)	15000mm
Total motor power	24.2kW	17.6kW	16.5kW
Dimensions	5800x2600x2600mm	5800x2000x2600mm	3500x2000x2600mm
Weight	9000kgs	8000kgs	7000kgs

Wood Band Saw Machinery
A saw machine that uses an endless band saw blade as a saw tool is wound around two saw wheels and makes continuous linear motion in one direction to cut wood.
It is mainly composed of a bed, saw wheel, upper saw wheel lifting, and tilting device, band saw blade tensioning device, saw blade guide device, workbench, guide plate, etc. The bed is made of cast iron or welded steel plate.

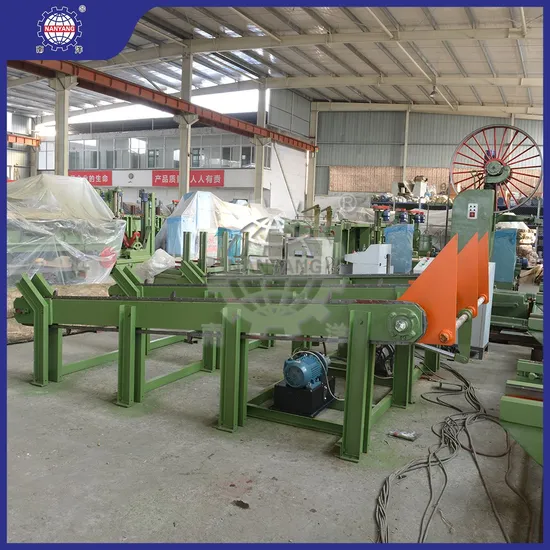

MJ329/4D Automatic Carriage :
Computer swing ruler, electric hook, wire rope traction, ground control
Product Features
1. Automatic forward and backward, electric wood clamping
2. PLC-controlled touchscreen digital display footage system (can display ten sets of parameters)
3. Frequency converter speed control
4. Enter to give way automatically
Cast Iron Saw Wheel
Dynamic Balancing Plus
Work Operation Is More Stable
Full Of Rigidity
Extra large cutting height, reinforced high-quality steel plate welded body, and optimized design of the body ensure long-lasting rigidity of the cast iron flywheel, which is precisely dynamically balanced and rotates more smoothly.
Optional:
Automatic rotating device. Automatic feeding device. Automatic conveyor line.
Company Profile
FAQ
Q1. How long does it take to get a reply after we send the inquiry?
A: We will reply to you within 24 hours after receiving the inquiry.
Q2. Are you a direct manufacturer or trading company?
A: Our factory is located in Hangzhou City, Zhejiang Province. You are welcome to visit us.
Q3. What products can I buy from your factory?
A: Our main products are: wood band saws and carriages; wood drying equipment, saw blade sharpening machines; saw blade rolling machines, saw blade welding machines, etc.
Q4. What are the main application areas of your products?
A: Application areas of woodworking band saw machines and Large-scale Vertical Band Saw Carriage: furniture, flooring, wooden boards, building materials, handicrafts, lumber, wood packaging, and other wood products companies.
Application scope of wood drying kiln: furniture, flooring, wooden boards, building materials, handicrafts, wood, wood packaging, and other wood products enterprises.
Q5. Do you accept OEM and ODM custom orders?
A: We accept drawings to customize your products, and we have a professional R&D team.
Q6. How does your company ensure product quality?
A: We will have corresponding tests after each process is completed. For the final product, we will do a 100% comprehensive inspection according to customer requirements and industry standards.
Q7. What payment method?
A: When quoting, we will confirm the transaction method to you, FOB, CIF, CNF, or other methods. Generally, customers pay 30% in advance, and the balance is paid before factory shipment. We mostly pay by T/T, of course, L/C is acceptable.
