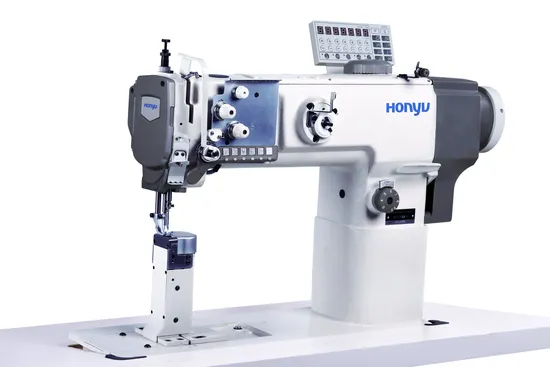

HY-1730B Post Bed, Single Needle Compound Feed Sewing Machine
| US$500.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HY-1730B
Condition
New
Certification
CE
Application Place
Factory
Applicable Thickness
Thick Material
Drive
Direct Drive
Thread Number
Single Thread
Needle Number
Single Needle
Stitch Type
Lock Type
Transport Package
Wood Case/Normal Carton
Specification
1.1CBM
Trademark
HONYU
Origin
Zhongshan
HS Code
8452211000
Production Capacity
1000pieces/Year
Product Description
Walking foot leather industrial sewing machine, post bed sewing machineHY-1730B | Direct drive, post bed, single needle compound feed sewing machine
| Model No. | HY-1730B |
| Feeding system | Alternating presser foot, feed dog and needle feeding |
| Max sewing speed | 2000 s.p.m |
| High of the post bed | 160mm |
| Shuttle diameter | Ф26mm |
| Applied needle | DP×17 #18-#23 |
| Thread size | Maximum thread 9 strands nylon |
| Max stitch length | 9mm |
| Max alternating presser foot | 6.5mm |
| Max presser foot lifting height | 16mm |
| Auto back tacking | √ |
| Presser foot lifting height by air | √ |
| DL function | √ |
| Operation space | 335×260mm |
Product Description:
1. It's equipped with auto trimming, auto back tacking, pneumatic presser foot lifting, integrated LED light, free handle bobbin winder and self-locked stitch length dial, make the daily sewing more efficient.
2. Extra large operation space and right side post bed are convenient for sewing curved material.
3. When the sewing reaches the position between up and down step, pressing the DL switch can effectively reduce dense needles, broken thread, broken skin problem.
4. It's equipped with horizontal large hook, can sew maximum thread of 9 strands nylon.
Typical Field of Application:
Application: three dimension material topstitch process for sofa and car seat.
