Baby Milk Feeding Bottle Hot Filling Blow Molding Machine

Product Description

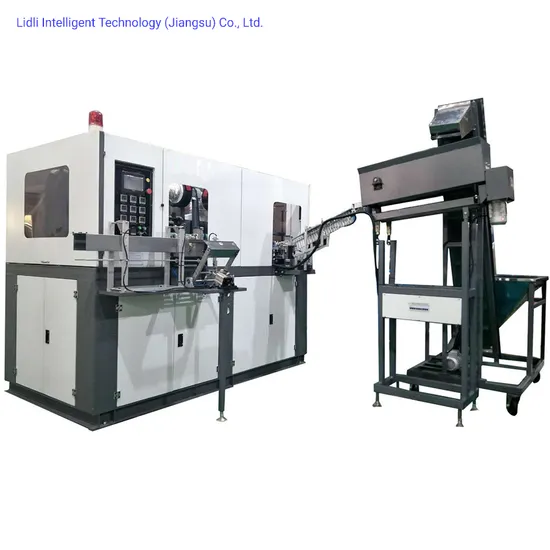

Introduction for Linear Automatic Small PET Bottle Blow Molding Machine
Linear Automatic PET Blow Molding Machine is an economical model self-developed by LiDLi technical team, with features economic, fast, convenient. It can make different kinds of PET packages for water, edible oil, juice, wine, cosmetics, etc. It can make max. 2Litre bottle.
1. Upgrade to Servo Motor Drive:
a.Preform Feeding System: servo motor partitioning effectively solves the problem of wear and deformation.
b.Preform Transfer System: PET preform horizontal movements are driven by Servo Motor. Make preforms 4pcs as one unit, overall simplified stepping motion, achieve high-speed positioning and smooth motion. to complete one step cycle, the Servo Motor drive gear rotates only one-third of a turn. Speed of preform moving is 2 times of Cylinder Driven way.
2. Mold fixed by drawer design, mold changeover can be easily done in a half-hour.
3. Efficiency Constant Temperature Oven:
a.Use the most advanced high-frequency Infrared Lamp, increase heating efficiency 30%-50%.
b.Each layer of the lamp is separately controlled, with an assistant ruler on a machine.
c.Intelligent temperature control system.
Temperature detector feedback to PLC automatically, PLC makes an accurate judgment and then controls circulation air in the oven. It leads to constant temperature in Oven, free from voltage fluctuations and ambient temperature. It works when large ambient temperature difference (-28~45ºC).
d.Preform self-rotation System, ensure every side of every preform is heated evenly, which ensures the quality of the blown bottle. (thickness up to 4.5mm)
e.Neck Cooling in Oven.
Preform Necks are cooled by recycling water, which avoids neck deformation
Configuration for Blow Molding Machine

No.	Description	Brand & Origin
1	PLC	Mitsubishi(Japan)
2	Operating Panel	Schneider (France)
3	Cylinder	TAIWAN
4	Servo Motor	XINJIE (CHINA)
	Speed Reducer	XINJIE (France)
5	Valve	TAIWAN
6	Photoelectricity switch	Omron (Japan)
7	AC Contactor, Thermal Relay	Schneider (France)

Specification for Blow Molding Machine

Items		Unit	Model
Mold Spec.	Clamping stroke	mm	125
	Stretching stroke	mm	240
	Bottom stroke	mm	30
	Cavity pitch	mm	114.3
	Number of cavities	cavities	6
Container Spec.	Max. volume, ctr.	L	2
	Neck diameter	mm	18~38
	Max.diameter, ctr.	mm	114.3
	Max. height, ctr.	mm	320
Power Spec.	Total power	kW	130
	Heating Power	kW	120
Air Compressor Spec.	Blowing pressure	Kg/cm2	28-35
	High-pressure air consumption	m3/min	3.6
Water Chilling Spec.	Operating pressure	Kg/cm2	≥6
	Temperature range	ºC	5~20
	Refrigerating capacity	kcal/hr	15000
	Flow Rate	m3/h	4.1
Water Cooling Spec.	Operating pressure	Kg/cm2	≥4
	Temperature range	ºC	≤30
	Flow Rate	m3/h	4.8
Main Machine Spec.	Size(L*W*H)	mm	5200*1790*2110
	Weight	Kg	7500

Spare Parts for Blow Molding Machine

SN.	Description	Specification	Qty.	Unit	Note
1	Hex wrench	φ14	1	piece
2	Solid wrench		1	piece
3	Monkey Wrench	Φ 50	1	piece
4	Cross Screwdriver		1	piece
5	Slotted Screwdriver		1	piece
6	Slotted Screwdriver	3MM	2	piece
7	Combination Wrenches		8	piece
8	Tool kit		1	piece
9	Quick Connector (Non-adjustable)	Φ6-M5	10	piece
		φ10-1/2	2	piece
		Φ8-1/4	6	piece
		Φ10-1/4	6	piece
		φ16-1/2	6	piece
10	T-junction	φ6	6	piece
		φ8	2	piece
		φ8	4	piece
11	Quick Connector ( straight )	Φ8-Φ6	6	piece
13	Elbow Connector (Adjustable )	Φ8-1/8	10	piece
		Φ8-1/4	4	piece
		(Φ6-M5)	6	piece
14	Elbow Connector (Non-Adjustable )	Φ10-3/8	2	piece
		Φ10-1/4	6	piece
		Φ16-1/2	4	piece
15	PU Pipe	φ6×2 meter	1	piece
		φ8×6 meter	1	piece
		φ16×2 meter	1	piece
		φ10×4 meter	1	piece
16	Sealing parts		4	piece
17	Heat Lamps		20	piece
18	(Cylinder) magnetic switch		3	piece
19	Optoelectronic switch		4	piece
20	Approach switch		4	piece
21	Servo Proximity switch		4	piece
22	Supercharge screw (with O ring)		4	piece
23	High-pressure pipe (1 inch 3 Meter / containing two high-pressure joints)		2	piece
24	Supercharge sealing parts		2	piece
25	Buffer rubber of Stretching rod		2	piece
26	Buffer rubber of Stretching rod		2	piece
27	Revolution link		6	set
28	Perform holder		6	piece
29	Φ8 Clamp spring (Outside)		100	piece
30	Chain pin		12	piece
31	Clamp spring of preform holder (Inner)		12	piece
32	Gripper		4	pair
33	Machine feet Φ165		8	piece
34	Tools		1	SET
