High Quality Bed Type Milling Machine Manual Machine

Product Description

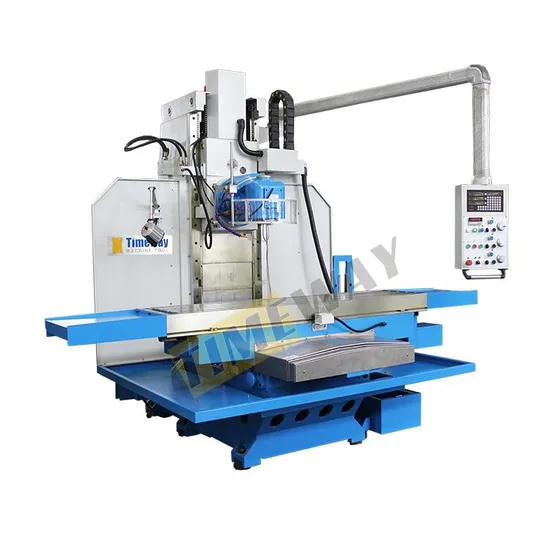

Bed Type Milling Machine
Product Description
* Universal milling head with an ISO50 spindle taper;* Universal head swivels to horizontal position;* Geared drive spindle speeds 12 steps 35-1345rpm;* 7.5kW/10hp main spindle motor;* Servo controlled feed motors on X, Y, Z-axis ensures response, accuracy and consistent feed;* X, Y and Z-Axis servo controlled power-feed with rapid;* Ball screw X, Y-axis providing smooth and accurate operation;* Rapid feed servo controlled on X, Y, Z-Axis;* Hardened and ground worktable & slideways;* Square construction slides for X, Z-axis to maximize rigidity;* Large 2100 x 500mm slotted work table;* High grade casting for additional strength and minimal deformation;* Quality electrics & overload protection in an easy access enclosure;* High/neutral and low gear selection lever to maximize torque;* Micro switch on the manual knee handle for additional operator safety;* Metric dial graduations of 0.02mm for X, Y, Z-axis;* Table trays each end of work table;* Clutch hand wheels X, Y-axis;* Coolant system and halogen light included;* Automatic oil lubrication pump and reservoir;* Tool box and operations manual

Specification		BM716
Table	Table size	2500x575 mm
	T slot number/width/distance	3-23-152 mm
	Max. load of Table	3000 kg
Machining range	Longitudinal travel (X-axis)	1800 (2000) mm
	Cross travel (Y-axis)	600 mm
	Vertical travel (Z-axis)	900 mm
Main spindle	Spindle taper	ISO50 7:24
	Spindle speed step	12steps, 40-1200rpm
	Distance from vertical spindle axis to column surface	110 mm
	Min. distance from vertical spindle nose to table surface	49 mm
	Min. distance from horizontal spindle axis to table surface	30 mm
Feeds	Longitudinal/cross feed	20-2200 mm/min (variable)
	Vertical feed	12-1320 mm/min (variable)
	Longitudinal/cross rapid speed	3000 mm/min
	Rapid Traverse vertical	1800 mm/min
Motor power	Main motor	11 kw
	Feed motor	2.9 kw
	Elevating motor for headstock	2 kw
	Coolant motor	550 w
Others	Package dimension	3280x2280x3100 mm 2580x1990x1230 mm
	Overall dimension	4300x3200x3300 mm
	Machine weight	10000 kg

Detailed Photos
After Sales Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer).
Company Profile
"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories&tools, etc.

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine
