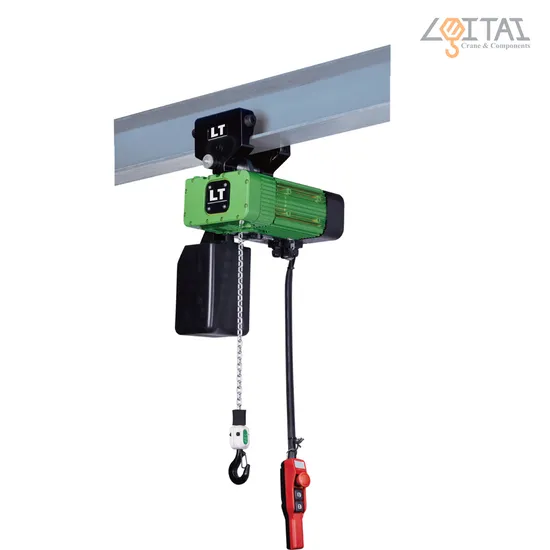

European Type Sc Electric Chain Hoist with Electric Trolley

Product Description

500kg SC Series Industrial Electric Chain Hoist in Fabrication Plants for Goods Lifting
Product Description
General Description:
A chain hoist is a term for a piece of lifting equipment that is suspended (usually from a beam via a trolley) featuring a chain and hook. The hook is used to secure the object being lifted while the chain is used to lift the hook and the load attached to an appropriate height. Manual chain hoists require the user to pull one end of the chain to lift the load while electric hoists require the user only to push a button (up or down) to control a motor that will lift the load attached (providing it does not exceed the safe working load). Chain hoists can be suspended in a number of different methods, most come with a hook or trolley.
Application:
Hoists are the heart of crane systems. You can use these electric chain hoists on an overhead crane, a workstation crane, or with a jib crane. Compact headroom, hook suspension and a range of other features make our hoists easily adjustable for your specific workstation needs. Their versatility makes LIETIE electric chain hoists an ideal solution for many lifting applications.
Chain hoists in daily use at workstations have to be robust, reliable and low-maintenance.
Structure:

Motor: Motor performance meets JB/5317 and European standards. Strong fan cooling system Motor insulation class F Protection level IP55 or above Low temperature motor, long service life	Brake: CE Friction material is asbestos free JB/5317 and European standards. Brake spring adopts special processing technology Long life brake coil suction	Overload Friction Clutch and Gearbox: The mechanical safety clutch is installed in the gearbox to ensure the stability and reliability of the limited load
Control System: Adopt safety voltage with reliable limit switch,make operation more safe.	SC	Chain drive The chain drive adopts five sockets or above design, which makes the whole transmission more stable and reduces the chain steering wear
Chain: The use of high strength carburizing chain, chain safety factor up to 5 times, wear resistance	Surface treatment: The whole use of spray paint treatment, also according to the special environment requirements for special anti-corrosive treatment	Chain box: Can choose plastic chain box, high strength polyester chain bag and iron chain box according to different lifting and low

Product Parameters

SC Electric Chian Hoist
Item		Standard	Optional
Environmental Temperature		-20°C-+40°C	-40°C~+80°C
IP		IP55	IP66
Painting	Color	RAL6001/9017	Customized
	Thickness	80	120, 240
Pendent Control		Pendent Control with EMS	Wireless Remote Control or Pendant
Control Method		Contactor Control Includes the Main Contactor	For Crane Manufacturersoes Exclude the Main Contactor and Transformer
Control Voltage		AC48V	AC24V,AC36V,AC11 OV,AC220V
Lifting Motor		Change Pole	VFD
Travel Speed	50Hz	5/20m/min	10,20,25,30
	60Hz	6/24m/min	12,24,30,36
			VFD
Motor Power 50Hz/60Hz		220-440V 3P 220,230,380,400,415,440	All
Chain		Galvanized Grade8 according DIN5684	Black Coating Grade8 according DIN5684
Chain Guard Device		Casting	Multilayer Guide Chain Device Made from Hardened Spring Steel Plate
Chain Pocket		Plastic	Steel plate, High Strength Polyester Silk
Load		Hook Block	Thread Rod
		-	Stainless Steel
Limit Switch	Lifting	-	EMS
	Traveling	-	Slow Down or Stop In Both Directions
Overload protection		Friction Clutch	Load Cell
Safty		-	Horn, Sound and Light Alarm
Signal Generator		-	Large Font Load Display Screen, Load Display on Control Button,
Visual Signals		-	Can be Read On The Computer
Data Exchange		-	Use Computer
Cumulative Load Controller		-	Dedicated Control Module
Mechanical Security Installation Device		According Cross Trolley, the So Large Flange Width is Equipped with the Support Guide Wheel.	Guide Wheels will Be Fixed If Flange Width is so Small
Lifting brake		Spring Acting Single Disc Brake, Brake Pads Free of Asbestos	Released Manually Double brake
Data Record		-	Running Time Counter
Control Panel		PA66	Q235
