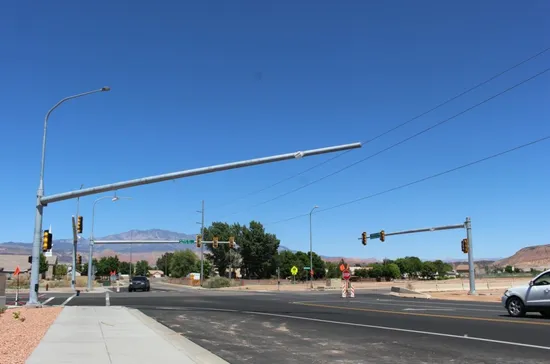

6m 8m Steel Traffic Light Post for Street Safety
Basic Info.
Model NO.
TRAFFIC POLE
Function
Green Signal, Red Signal, Yellow Signal, Flash Alarm Signals, Direction Signals, Traffic Signal Wand, Lane Signals, Crosswalk Signal, Command Signal
Control Method
Timing Control
Certification
CE, RoHS
Housing Material
Metal Shell
Light Source
LED
Patterns
Arrow
Mask Specification
Φ200mm
Surface Treatment
Hot-DIP Galvanized
Powder Coated
Optional
Raw Material
Q235B/A36/Q345b/A572, Q460, ASTM573 Gr65, Gr50
Welding
Advanced Submerge-Arc Welding Technology
Pole Height
6m,7m,8m
Anchor Bolts
Available
MOQ
1 PC
Shape
Conical, Square, Round, Octagonal Optional
Galvanizing Standard
En ISO 1461 or Equivalent
Welding Standard
En 1011 or Equivalent
Design Standard
En 40-5 or Equivalent
Arm Bracket
Customized
Flange Plate
Customized
Wind Speed
7m/S or Customized
Pole Thickness
2.5mm-4mm
Transport Package
Bubble Packing+Blanket Packing
Specification
6M, 8M,
Trademark
FOREVELIT
Origin
China
HS Code
94059900
Production Capacity
5000PCS/Month
Product Description
Product Parameters H6M+L0.6M Traffic Light Pole Diameter| Lamp pole Steel:Q235B Diameter of upright rod: 220-280mm Thickness of upright rod: 5mm Diameter of horizontal rod: 100-200mm Thickness of horizontal rod: 4mm Diameter of bottom flange: 550mm Thickness of bottom flange: 18mm Connecting flange: 300*300mm Welding mode: Automatic submerged-arc welding Anti-corrosion treatment: Pickling + internal and external hot galvanization + passivation + electrostatic plastic spraying Thickness of zinc coating: ≥80um Thickness of sprayed plastic coating: >=100 um Appearance: Smooth surface, hardness >= 2H | Traffic light: Form: Combination of red, green, and yellow Housing: Aluminum alloy or PC Dimensions: 1050*350mm Light source: Full screen or arrow Diameter of single lamp: 300,400mm Power: 5-24W Voltage: 220V Weight: About 10KG Sign: Customization: Yes Material: Aluminum-alloy plate + aluminum slot Category of reflective coating: Super High Level, High Level, Diamond Level Background color: Yellow, blue, or white Thickness: 1.2,1.5,2,3 |
| Main Pole Height:From 6M to 6.8M at 5-10mm thickness for Options. | |
| Cantilever Length:From 3METER to 14M at 4-8mm thickness for Options. | |
| ShapeConical, octagonal, square, cylinder | |
| MaterialUsually Q235B/A36,then Q345B/A572,Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 for option. | |
| Surface treatmentHot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. | |
| Production ProcessRaw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Galvanization or powder coating ,painting →Recalibration →Thread →Packages | |
Product Advantages Top Brand Raw Material: Offering a selection of premium steel plates such as Q235B, Q345, Q355, GR460, and more.
A Mill Certificate issued by the factory, complete with stamp and signature, must be provided to ensure material authenticity. Steel Thickness Inspection: Precision tolerance of less than 0.1mm.
Complies with ASTM A36 = Q235B standards.
Complies with EN 10025 standards. Magnetic & Ultrasonic Welding Inspection: Ensuring impeccable weld quality.
Complies with AWS D1.1 standards.
Complies with EN1090-2 standards. Average Hot Dip Galvanizing Thickness: More than 86UM for superior corrosion resistance.
Complies with GB/T13912-2002 standards.
Complies with ASTM A123 standards.
Complies with ENSIO 1461 standards. Powder Coating: Thickness exceeding 100UM for enhanced durability.
Complies with GB/T 3181-2008 standards.
Complies with ASTMD339-83 standards. Company Profile
