Synthetic Pocket Filters for Gas Turbine Filtration System

Product Description

Foreword: Thank you for your interest in advance!
It has been 16+ years since we processed the first HVAC air filter.
You can find various replaceable filters for Camfil, AAF etc. We have all kinds of frames and filter media available. As for prefilter media and secondary filters, we buy the optimum quality from Chinese native market. Their quality is stable and super. As for the HEPA filters, we imported from American Lydall and Suzhou H&V. We control the quality from the source.
There are plenty of testing machines in our laboratory including filter media testing and completed filters tested.
Welcome to have a Virtual tour to our factory by clicking the following:
https://thenow-filter.en.made-in-china.com/
Product Description

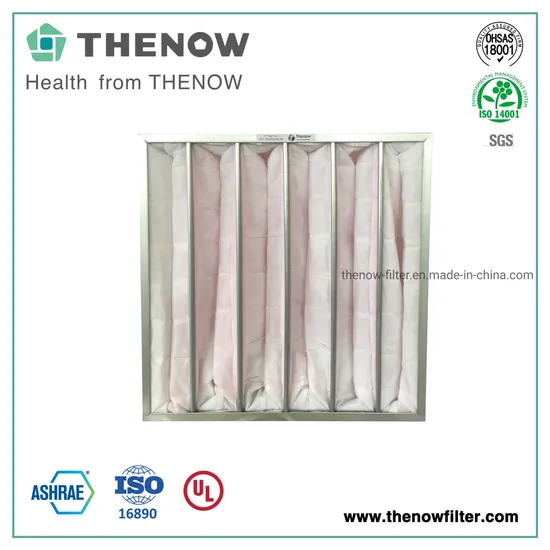

Synthetic Pocket Filters for Gas Turbine Filtration
>Structure:

Frame	Filter Media
Extruded Aluminum/Galvanized steel sheet/Plastic	Multi-layer complex synthetic fiber

>Features: Quick and easy mounting Large filter area and high dust holding performance
>Application:
Pocket filters have been widely used in central air conditioning ventilation systems and some gas turbine air inlet systems. They are used for secondary filtration to reduce load and prolong service life of higher-efficiency air filtration systems.
>Technical data: F5~F9 EN779; MERV9~15 ASHRAE Average arrestance: 80%~90%(ASHRAE 52.2-1992) DIN 53438 Flammability: F1 UL 900 Standard: Class 2 Max air flow rate: 125% of nominal air flow Final pressure drop: 2-3 times initial pressure drop Thermal Stability: 70ºC Moisture resistance: 100% RH >Sample data:

W*H*D(mm)	Filter Class	Pockets(pcs)	Filter Area(m2)	Airflow(CMH)	Intial Pressure Drop(Pa)	Airflow(CMH)	Intial Pressure Drop(Pa)
595*595*600	F5	8	6.4	2540	30	3800	45
	F6				40		60
	F7				75		110
	F8				85		130
595*595*600	F5	6	4.97	2540	35	3800	50
	F6				50		75
	F7				80		120
	F8				90		135
490*595*600	F5	5	4.13	2100	35	3140	50
	F6				50		75
	F7				80		120
	F8				90		135
290*595*600	F5	3	2.46	2100	35	1860	50
	F6				45		75
	F7				80		120
	F8				90		135

Company Profile >Company Show
Thenow Purification Technology has focused on air filtration on HVAC industry for more than 16 years. We hope to bring the world more clean air with quality and environmental friendly filters.
>Certificates and Test reports
Standard is a ruler for the filters from all over the world. We have been trying to meet the most strict standard. Our HVAC air filters have been certified by CE, SGS and tested according to EN779, EN1822, Ashare and the latest ISO16890. You can rest assured when make a decision to buy. Click here if you want to see details.
>8+ years exporting experience
We have been to Powtech In Nurnberg in 2014, Achema in Frankfurt in 2015, AHR in Chicago in 2018, Chilliventa in Nurnberg in 2018. And our filters have been to all over the world: Europe, Middle East area, Africa, South Asian area, South American area and North American area.
>Professional Packing and Container Loading
Packing is important especially for carboard frame disposable filters and HEPA filters with glassfiber filter media. So we are very careful with it.
