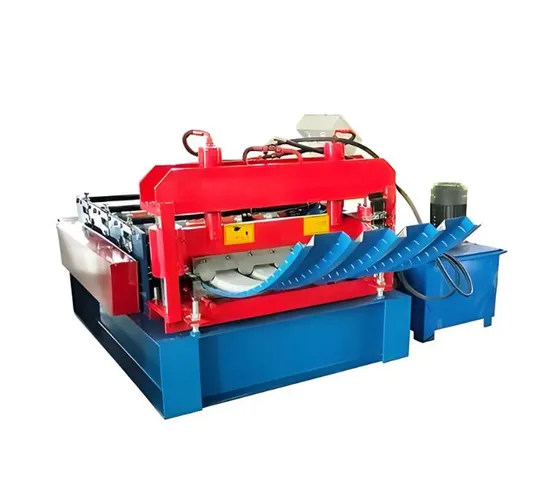

Simple Structure Horizontal Steel Crimping and Curving Profiling Machine

Simple Structure Horizontal Steel Crimping and Curving Profiling Machine

US$10,000.00 1 Set (MOQ)

Basic Info.

Condition
New
Certification
ISO9001: 2000, CE, SGS
Automation
Automatic
Type
Metal Tile Forming Machine
Suitable Material
Color Steel Sheet
Thickness of Raw Material
0.3-0.8mm
Yield Strength of Material
235MPa
Working Speed
About 1500-2000 mm/Min
Method
Roll Forming
Processing
Roll Forming
Product
Roofing
Brick Raw Material
Steel
Transport Package
Naked Machine Body Load in 40′ Container
Specification
CE
Trademark
STW
Origin
Zhejiang, China
HS Code
88452210
Production Capacity
20/Month

Product Description


1-Product Feature of
The colored steel tiles produced by this machine look beautiful ,elegant and noble .They are widely used as the roof of garden ,factory ,hotel,exhibition center and villa ,etc .
No. item Parameter(all is subject to our final design)
1
Suitable raw material Type Common galvanized & pre-painted steel
Yield strength 235MPa(or other high strength steel)
Thickness(mm) 0.4-0.7
width(mm) According to final design
2 Manual uncoiler's capacity Max.5tons
3 Forming speed(m/min) About 18-20m/min
4 Main motor power(KW) 7.5kw
5 Hydraulic power(KW) 3kw
6 Forming roller groups Around19-20 groups
7 Raw material of forming roller High quality No.45 steel
8 Raw material of cutting blade Cr12mould steel with quenched treatment
9 controlling system Mitsubishi PLC& converter
10 Suitable industrial voltage According to your special requirement
11 Machine dimensions(L*W*H) 6.8m×1.8m×1.52m
12 Machine weight About 9-10tons


2-Machine components
Tile forming machine consist of uncoiler, coil sheet guiding machine ,covering film device ,main roll forming system, pressing device,cutting device,Hydraulic station ,PLC control system and support table .
3.Working flow
uncoiling the sheet---guiding the sheet---covering the film---roll forming punching the step---measuring the length---cutting the panel---panels to the supporter
Frequently Asked Questions (FAQ):
Q1: When Can I Get The Quotation?
A: We Usually Quote Within 24 Hours After We Get Your Inquiry. If You Are Very Urgent To Get The Price, Please Call Us Or Tell Us In Your Email So That We Will Regard Your Inquiry Priority.
Q2: How Can I Get A Sample To Check Your Quality?
A: After Price Confirmation, If You Need The Samples, We Will Charge For The Sample Cost. But The Sample Cost Can Be Refundable After Order Confirmation When Your Quantity Of The Order Is More About The MOQ.
Q3: Can You Do The Design For Us?
A: Yes. We Have A Professional Team that has Rich Experience In Outdoor Furniture Design And Manufacturing. Just Tell Us Your Ideas And We Will Help To Carry Out Your Ideas Into Perfect Furniture. It Does Not Matter If You Do Not Have Someone To Complete Files. Send Us High-Resolution Images, Your Logo, And Text, And Tell Us How You Would Like To Arrange Them. We Will Send You the Finished Files For Confirmation.
Q4: What About The Lead Time For Mass Production?
A: Honestly, It Depends On The Order Quantity And The Season You Place The Order. The Lead Time Of MOQ Is About 35 To 45 Days. Generally Speaking, We Suggest That You Start Inquiry Two Months Before The Date You Would Like To Get The Products in your Country.
Q5: How Do You Make Our Business Long-Term And Good Relationship?
A:1. We Keep Good Quality And Competitive Price To Ensure Our Customers Benefit ;
2. We Respect Every Customer As Our Friend And We Sincerely Do Business And Make Friends With Them, No Matter Where They Come From.
