Granite Henglong Standard Sink Cutter Bridge Saw Cutting Machine with ISO

Product Description

Product Description

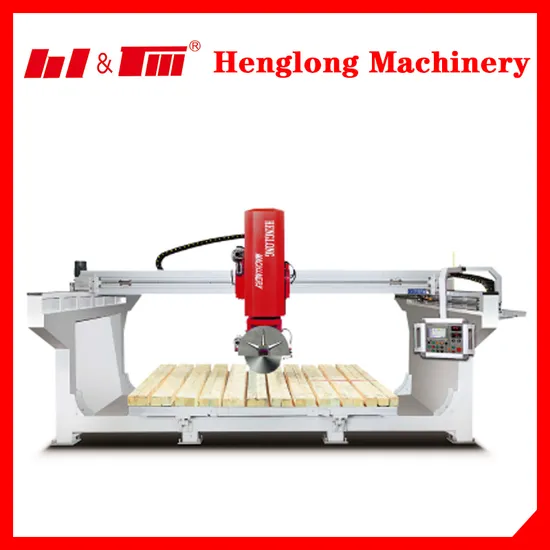

1.The machine adopts a bridge-type integrated structure, the machine bed is strong and stable, and has good stability.
2.The three-axis adopts high-precision linear square rail, which has high precision, wear resistance and long service life3.The machine head can be rotated in parallel at an angle of 0-90 degrees, and can be cut horizontally and vertically.4.The machine head can automatically perform 45-degree chamfer cutting, with high precision and high efficiency.5.The system adopts independent research and development PLC programming system, touch screen operation interface, convenient operation and strong humanity.6.One-piece structure, no need to disassemble, easy to install and easy to move. 7.The platform can be tilted from 0 to 85 degrees, which is convenient for placing large stones.

Machine details

Technical Parameters:

Max blade diameter	Φ400 MM
Working table size(L*W)	3200*2000 MM
Max. working dimension(L*W*H)	3200*2000*80MM
Working table tilting degree	85°
Cutting head tilting degree	45°
Cutting head rotating degree	0°-90°
Main motor power	11 KW
Water consumption	4 m³/h
Weight	3500 KG
Dimension(L*W*H)	5100*2800*2600 MM
