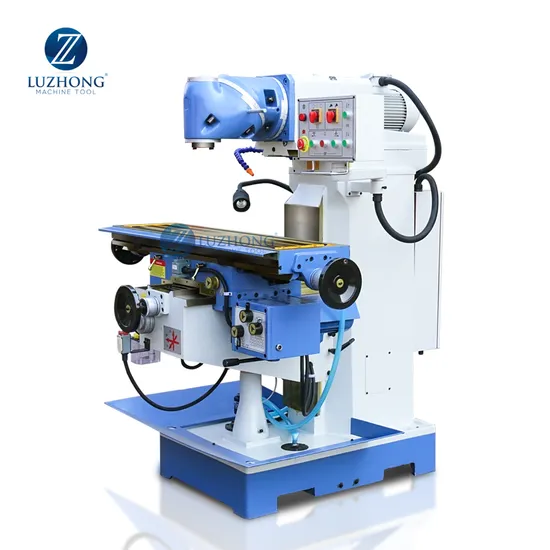

Metal conventional X6232 high precision rotary head milling machine

Product Description

Metal conventional X6232 high precision rotary head milling machine
Product Description

Product Parameters

SPECIFICATIONS	Units	X6232
Table size	mm	1370*320
Table travel	mm	800/320/400
T slot(number-width*pitch)	-	3-16*60
Spindle taper	-	IS040
Spindle speed range(steps)	rpm	48-1660 (12)
Distance between spindle nose and table surface	mm	120-520
Distance between horizontal spindle axis and table surface	mm	-
Table feed range (steps)	mm /min	XY:22-555 (8) Z:electric
Swivel angle of milling head	o	360
Main motor power	kw	3
Feed motor power	kw	1.1
Machine weight	kg	1700
Overall dimension	mm	1700*1560*1750

Detailed Photos

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
