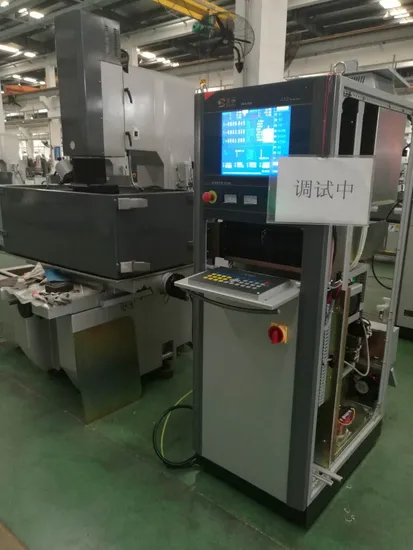

EDM Die Sinking EDM Machine (EDM450CNC)
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
EDM450CNC
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Color
Grey
Brand
Baoma
Warranty
12 Months
Voltage
380V AC/50 Hz or 415V AC/50 Hz
Transport Package
3 Plywood Cases/Unit
Specification
CE; ISO9001; ISO14001
Trademark
BAOMA
Origin
China
HS Code
84563010
Production Capacity
150units/Year
Product Description
EDM Die Sinking Machine [ EDM450CNC ]A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole).
| Parameters | UNIT | EDMN450CNC | |
| Working Tank (LxWxH) | mm | 1200 x 850 x 450 | |
| Max. Oil Level | mm | 290 | |
| Table Size (LxW) | mm | 700 x 400 | |
| Travel Size | X | mm | 450 |
| Y | mm | 350 | |
| Spindle Travel(Z) | mm | 300 | |
| Distance between Spindle Nose to Work Table | Min. | mm | 300 |
| Max. | mm | 600 | |
| Max. Table Load (Workpiece weight) | mm | 1000 | |
| Max. Spindle Hold (Electrode weight) | kg | 80 | |
| Oil Tank | L | 800 | |
| Oil Tank Dimension (LxWxH) | mm | 1500 x 1000 x 450 | |
| Control Method | AC / DC (Japan SANYO) | ||
| Rated Current | A | 60 | |
| Machine Dimension (LxWxH) | mm | 1640 x 1050 x 2150 | |
| Machine Weight | kg | 3500 | |
