Polypropylene Recessed Filter Plates for Recessed Chamber Membrane Filter Press From Jincheng Filter Press

Product Description

Product Overview

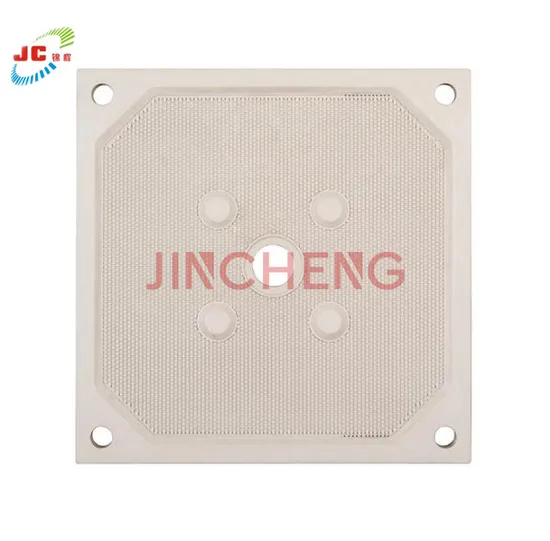

Chamber filter plate is a modification of filter plate and frame. Two compacted plates create an individual chamber; filter cake produces on the plates in layer form. As the thickness of the cake increases, the permeability and flow rate decreases causing longer filtration cycles and higher operation costs.During the later stage of filter cycle, high feed pressure is employed to dry the filter cake and this dewatering period is quite long. This period is usually called non-productive phase.
FEATURES AT A GLANCE
1 Center feed, head feed, foot feed, corner feed and external feed. Other special feed arrangements can be customized for practical purposes.
2 High pressure filtration makes the percentage of moisture of the cake far lower.Maximum filtration pressure is rated at 7 bar (101 psi) or 16 bar.
PRODUCT SPECIFICATIONS

No	Name	Model	Size	Raw material
1	Chamber filter plate	390	390*390mm	High reinforced PP
2	Chamber filter plate	520	520*520mm	High reinforced PP
3	Chamber filter plate	800	800*800mm	High reinforced PP
4	Chamber filter plate	1000	1000*1000mm	High reinforced PP
5	Membrane filter plate	870	870*870mm	High reinforced PP
6	Membrane filter plate	1000	1000*1000mm	High reinforced PP
7	Membrane filter plate	1250	1250*1250mm	High reinforced PP
8	Membrane filter plate	1500	1500*1500mm	High reinforced PP

Successful Project
SIMILAR PRODUCTS

Stainless Steel Filter plate
Round filter plate
Cast Iron Filter Press
Certifications
Workshop

Customer Photos

FAQ
Q1: Do you provide on-site installation service?
Yes, we will provide on-site installation, debugging, training and other services.
Q2: Why did I choose your product? We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.
Q3: How long does it usually take for your products to ship? Generally, the delivery time is two to three weeks.
Q4: Do you support OEM service? Yes, we fully support OEM services and welcome you to customize our products.
Q5: What if the product received has been damaged? Please rest assured that within 15 days after receipt of the goods, we will provide no reason to return or exchange services.
Q6: Can I get a cheaper price?
Of course, please contact us, we can give you a cheaper price. Q7: What if the product breaks down in the future? Don't worry, we offer a very long warranty, and we will send our engineers to repair it, or even we can replace it.
