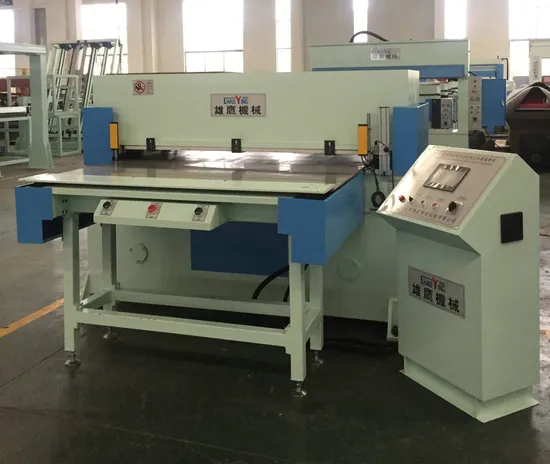

XYJ-3/40 Both Sides Feeding Hydraulic Plane Die Cutting Machine

Product Description

XYJ-3/40 Both Sides Feeding Hydraulic Plane Die Cutting Machine
use and character:
The machine is applicable to such cutting knife mold found objects: Leather, plastic, fabric, purses, toys, hats, foaming tablets, floor materials and soft cloth strips with a variety of needs.
Features are as follows:
1. Adopting Double oil cylinder, four-post oriented and Automatic balance link structure, which can guarantee the absolutely same cutting depth of each cutting position.
2. Automatic lubrication system, simple operation, low failure rate, strong impact force and extend the service life of the machine.
3. When pressing the cutting board and touching the cutter, it can cut automatically slowly to make that no size error between the layer and lowermost layer of the cutting material.
4. The special setting structure is equipped to assort with the cutter and cutting height to make the adjustment of stroke be simple and accurate.
5. Device of double sides auto-feeding worktable, control the feeding worktable advance and retreat, and be suitable for cutting two cutting dies of different height at the same time, feeding accurate and smooth.
6. Operation with two hands makes high safety.
7. Special sizes can be customized to the production, in order to meet the needs of different users.

Max cutting machine	40T
Stroke adjustment	0-100mm
Distance between the upper board and the lower board	60-160mm
Upper board area	1600*600mm
Lower board area	1600*610mm
Electric supply voltage	3P/380V/50HZ
Motor power	3kw
Total weight	2000kgs
Dimension	2400× 1910× 1360mm

About our company Jiangsu xiongying Precision Machinery Co., Ltd. Specializes in making hydraulic cutting machine, die cutting machine, cold press machine, high speed slicing machine, multi-blade sawing machine, embossing machine and such other precision machine and general machine. Our company covers an area of 14000m2, as a large enterprise in this industry, we have powerful technical force, complete production equipment, nice environment and convenient transportation condition. Our company is located in Yancheng City Dagang Industry Zone of Jiangsu Province and this town is called as "China Shoe Machinery City", which belongs to National Spark Technology Concentration Area.
After-sales service:
Guarantee is one year, but maintenance is lifelong. Replacement is free and ex-factory. All parts have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts . Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer. Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer's best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. We have Q/C department to control the quality from raw material to the finished product. When the machine was finished, we will send you the inspection video or photos. Or you can come to our factory to check it by yourself. As well as we have professional experience for packaging, so you can one hundred percent sure about our quality.
Lifelong service:
After the warranty period expires, our company will offer lifelong service to all contract-honoring clients and timely provide clients with spare parts, products and technical service at the most favorable price.
File service:
After the contract is implemented, we will establish files for clients, which include sales contracts, technical parameters, production task forms, commissioning reports and acceptance forms, relevant technical drawings, etc.
Related machine
Package and delivery
Client visit factory

We can make the machine according to your specifically demand , for example the color, the motor information, the cutting force, the working table size, your brand name logo etc.
