Automatic Plastic Extrusion Small Bottle Blow Molding Machine
| US$19,000.00-32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PXB65
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Extrusion System
Hard Gear Surface Decelerator + Japan Inverter
Auto Deflashing
Available
Total Weight
4t
Output(Dry Cycle)
1000 PC/Hr
Die Head Option
Single, Double, Tri-Head, Tetra-Head
Transparent Line
Available
Production Usage
Bottle, Toy, etc
Multi-Layer
Available
Multi-Color
Available
Screw Diameter
65mm
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 5L
Trademark
Puxin
Origin
Suzhou
HS Code
847730100
Product Description
PXB652L-5L Blow Molding Machine
Special Feature:
- High Speed Single Station For HDPE, LDPE, PP, PS, etc. Raw Material
- The whole hydraulic system equip Japanese YUKEN components
- Perfect Usage for high quality 2L-5L bottle, oil can, toys etc.
- Imported hydraulic valve, seal and Pressure Proportional Control.
- Optional Multi-color
- Quick Action Speed, Stable Running
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | HITECH | Taiwan |
| Inverter | MITSUBISHI | Japan |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | SONON | China |
| Motor | SIEMENS | China |

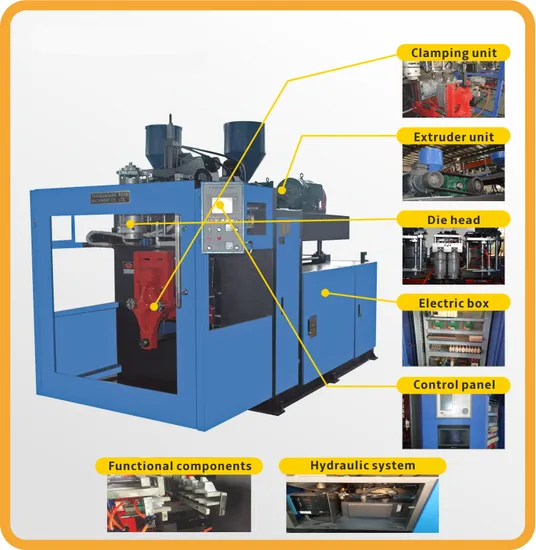

Basic Equipment
| Clamping system | Single Station+High-precision guide+large arm cylinder axle |
| Extrusion System | Hard gear surface decelerator+Japan inverter |
| Die system | Center -incoming extrusion die with special steel |
| Hydraulic system | Japan hydraulic valve seal and proportional control |
| Control system | Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts |
Parameters
| Specifications | ||
| Material | PE,PP, PVC, PA | |
| Max container capacity | L | 5 |
| Number of die | SET | 1,2,3,4 |
| Output(dry cycle) | Pc/hr | 1000 |
| Machine Dimension(LxWxH) | M | 3.4x1.9x2.5 |
| Total weight | T | 4.0 |
| Clamping Unit | ||
| Clamping force | KN | 68 |
| Platen opening stroke | mm | 150-500 |
| Platen size | mm | 338x380 |
| Max mould size(WxH) | mm | 338x350 |
| Mould thickness | mm | 155-300 |
| Power | ||
| Max drive | KW | 26 |
| Total power | KW | 32.5 |
| Fan power for screw | KW | 0.25 |
| Air pressure | MPA | 0.7 |
| Air consumption | M3/min | 0.6 |
| Average energy consumption | KW | 17 |
| Extruder unit | ||
| Screw diameter | mm | 65 |
| Screw L/D ratio | L/D | 24 |
| Melting capacity | Kg/hr | 70 |
| Number of heating zone | zone | 3 |
| Extruder heating power | KW | 13.8 |
| Extruder driving power | KW | 15 |
| Die | ||
| Number of heating zone | zone | 3 |
| Power of die heating | KW | 5.7 |
| Max die-pin diameter | mm | 135 |
| Center distance of double die | mm | 160 |
| Center distance of tri-die | mm | 110 |
| Center distance of tetra-die | mm | 85 |
Delivery Time:
- No later than 40 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
