NDIR Sensor CO2 Controller for Greenhouser and Hydroponics

Product Description

Product Description

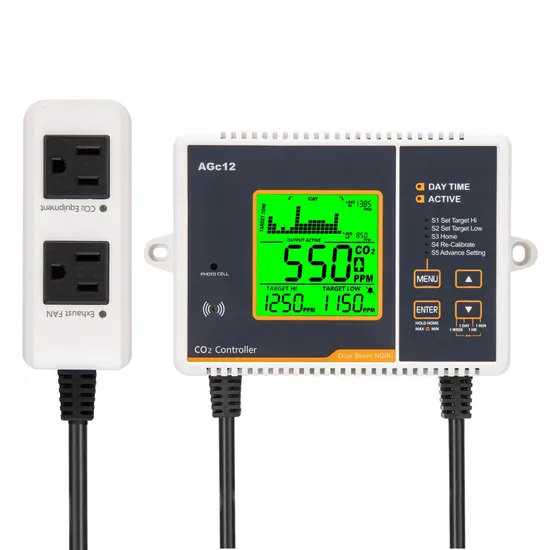

AGc12, a Wall Mount CO2 monitor and controller with Integrated Sensor, measures the CO2 level ranging from 0 to 5,000 ppm.
By using built-in Dual Beam NDIR technology and Day/Night auto detect sensor, it could monitor and control other connected devices, such as CO2 generator to help increase plant yields by supplying CO2 required for photosynthesis.
It is a perfect tool for agricultural applications like greenhouse/ hydroponics rooms, plant factories with two independent socket for Greenhouse mode and Vent mode.
Basic Info.

Model NO.	AGc12	Buzzer Sound	70dB @10cm
Trademark	OEM/ODM	Power Source	AC 100 ~ 240 VAC
Sensor Type	Dual-Beam NDIR	Origin	China KunShan
CO2 Range	0~5000ppm	HS Code	9027100090
Display Type	LCD	Production Capacity	80000 Pieces/Year
Photo Cell	Auto detect Day/Night	Transport Package	Carton
Sensor Unit Size	153*33*27mm (6.0*1.3*1.1inch)	Package Type	1 pcs/Color Box
Socket Unit Size	195*145*44mm195 (7.7*5.7*1.7inch)	Weight	700g ( 24.7oz)

Feature:
Ø Dual Beam NDIR (Non-Dispersive-Infrared) technology is used to improve the long term stability.
Ø CO2 controller; Tracer
Ø Built-in Day/Night detect sensor
Ø Chart with variable time Zoom Levels
Ø Foolproof "Hold Home" function
Ø Good Zone display indicate
Ø 2 independent socket for CO2 increase/decrease application

Operating Instructions
LCD Display:
Trend Chart Zoom:
Below is a table that show the available Zoom Levels for all parameters CO2, as well as the duration of each division for corresponding Zoom Levels:
Auto Detect Day/Night:
The built-in Photo-Cell sensor can automatically detect whether it is Day or Night.
In Greenhouse (Increase) mode it can override the CO2 control and shut off the CO2 generator by turning off the output power (CO2 Equipment socket) during the night. Conversely, if the Photo-Cell detects light and the CO2 level is low, the device will start the CO2 generator by turning on the output power (CO2 Equipment socket).
In Vent (Decrease) mode, Photo-Cell status does not affect the output power (Exhaust Fan socket) ON or OFF.
Greenhouse (INCREASE) Control:
This CO2 controller can be set for Green House mode application by S5 ADVANCE Mode setting, CO2 Equipment socket is on when CO2 concentration is below Set Target Low, and off when CO2 concentration is over Set Target Hi. For example, if the Set Target Low is 1000ppm, and the Set Target Hi is 1400ppm, the output power will shut off when CO2 over 1400ppm, and power on when CO2 below 1000ppm.
Vent (DECREASE) Mode Control:
This CO2 controller can be set for Vent mode application by S5 ADVANCE Mode setting.Exhaust Fan socket is on when CO2 concentration is over Set Target Hi, and off when CO2 concentration is below Set Target Low.

Specifications
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter

Measurement	Specification
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Designed For	Indoor use
Operating & Storage RH	0-95%, non-condensing
CO2 Measurement
Accuracy at 0~3000ppm	±50ppm or ±5% of reading, whichever is greater
Accuracy over 3000ppm	±7%
Repeatability	20ppm at 400ppm (standard dev. of 10 readings in 1 minute)
Measurement Range	0-5000ppm
Display Resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Temp Dependence	±0.2% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg (corrected by user's altitude input)
Response Time	<2min for 63% of step change or <4.6min for 90% step change
Warm-up Time	<30 sec
Power Input/Output	AC 120VAC, 60Hz, Current: 10A Max
Mains Supply Voltage	Fluctuations up to ±10% of the nominal voltage
Applicable Pollution	Degree of the intended environment (POLLUTION DEGREE 2)
Dimension	Socket Unit: 115*45*38 mm (4.5*1.8*1.5inch) Control Unit: 195*145*44mm (7.7*5.7*1.7inch)
Weight	760g ( 26.8oz)
