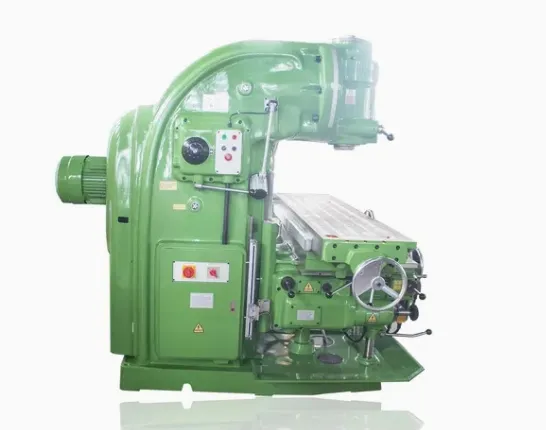

Automatic CNC Mill Machine Xk5032 Xk5040 3 Axis Metal CNC Milling Machine Price

Automatic CNC Mill Machine Xk5032 Xk5040 3 Axis Metal CNC Milling Machine Price

US$16,000.00-36,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XK5032 XK5040
Type
Knee-and-Column Milling Machine
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Automatic CNC Mill Machine Xk5032 Xk5040 3 Axis Me
Table SizeTmm
1320*320
Table Travel
800*280*350
Max. Load Working TableTkg
320
Spindle TravelTmm
70
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8457101000
Production Capacity
200

Packaging & Delivery

Package Size
192.00cm * 205.00cm * 196.00cm
Package Gross Weight
2800.000kg

Product Description

Automatic CNC Mill Machine XK5032 XK5040 3 Axis Metal CNC Milling Machine Price
Product Description
The main performance characteristics:
1. The fuselage and main components are of high strength cast iron, metallographic structure stability, ensure the stability of machine tool for long-term use.
2. The column bottom A font bridge type structure, Combined with the base of the box body, greatly reduce the heavy cutting vibration body,
3. The X/Y/Z three axis adopt Taiwan linear guide, high precision, accurate positioning, small friction, fast reaction speed,
4. The high speed, high precision and high rigidity spindle unit,
5. The intermittent automatic lubrication.
Application:
1. The product for the X, y, Z axis servo control semi closed loop vertical CNC bed type milling machines, three axis were rectangular hardened rail, rail width, large span, structure and dimension is compact and reasonable.
2. Can be realized on a variety of disk, plate, shell, cam, mold and other complex parts of a fixture,
3. Suitable for multi variety, medium and small volume production, can meet the complex, high precision parts processing.
4. Is mechanical manufacturing, mold, equipment, instrumentation, automotive, motorcycle and other industries of the ideal processing equipment.
5. Can be petty four axis of rotation, in order to meet the special requirements of machining parts
Main technical specifications:
Specifications Units XK5032 XK5040
Table size mm 1320x320 1700x400
Table travel(X.Y.Z) mm 800x280x350 920x330x450
T-type slot (numbers / width /space) mm 3-18-70 3-18-90
Max. load working table kg 320 500
Distance from spindle nose to table mm 40-390 50-500
Distance from spindle axis to column guide way mm 350 450
Rapid feed speed(X.Y.Z) mm/min 6000/6000/3000 6000/6000/3000
Feed speed X.Y(Z) mm/min 6-3200(3-1600) 6-3200(3-1600)
Spindle travel mm 70 85
Spindle taper ISO50(7:24) ISO50(7:24)
Max. swivel angle of vertical milling head ° ±45° ±45°
Spindle speed range rpm 30-1500(18 steps) 30-1500(18 steps)
Spindle motor power KW 7.5 11
Longitudinal, transverse feed motor torque(X.Y) N. m 12 12
Vertical feed motor torque (Z) N. m 22 22
Max. spindle torque N. m 1000 1000
Overall dimensions(Lx W x H) mm 1929x2055x1960 2310x2200x2400
Machine weight Kg 2800 4250


Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
