Plastic Oil Drum Chemical Barrel Jerrycan Automatic Extrusion Blow Molding Machine

Product Description

Plastic Oil Drum Chemical Barrel Jerrycan Automatic Extrusion Blow Molding Machine
Technical Parameter

Max. Product Volume (L)	30
Station	Double
Dry cycle (PC/H)	400*2
Screw Diameter (MM)	100
Screw L/D Ratio (L/D)	28
Screw Drive Power (KW)	75
Screw Heating Power (KW)	9.1
No.of heating zone (Srew)	5
Output of HDPE (kg/h)	200~250
Hydraulic pump driving power (KW)	22
Clamping force (KN)	250
Platen distance (MM)	420~920
Max. Size of Mold (W*H)(mm)	680*750
Capacity of Accumulator head (L)
Max.Die Diameter (single- head)(mm)	280
heating power (single- head) (KW)	5.28
No.of heating zone(single- head) (ZONE)	4
Blowing pressure (Mpa)	0.6
Air consumption (M/MIN)	0.8
Cooling water pressure (Mpa)	0.3
water consumption (L/Min)	100
Size of machine (L*W*H)(m)	5.9*3.4*3.9
Weight of machine (TON)	18

Detailed Description
1. Electronic control system: Japanese mitsubishi PLC computer and human interface (Chinese or English) control, color touch operation screen operation, modular temperature control.
All process Settings, changes, retrieval, monitoring, fault diagnosis and other functions are implemented on the touch screen without point contact working principle and components are durable.
2. Hydraulic system: proportional hydraulic control, equipped with imported famous hydraulic valve and oil pump, stable and reliable.
3. Plasticization system: high efficiency plasticizing and mixing screw, ensure the plasticization is sufficient and even.
4. Speed regulating system: variable frequency speed adjustment + alloy steel hard tooth surface reduction box, speed adjustment is stable, energy saving, noise low, durable.
5. Open mold mechanism: independent type open-closing die, locking mould and sliding mode sliding mechanism all adopt ball linear guide rail, the precision reaches the level of the emblem.
The positioning precision is high, easy and energy saving, and it is not deformed.
Patented product (no pull rod open die and locking mould system) : the four-corner self-locking locking mechanism, the locking force is large and the force balance is easy to install the mold, the space is large.
Small cylinder diameter opening and closing die, moving oil cylinder speed and energy saving.
It can be used for automatic extraction of products, stable product and safe operation.
6. Ejection: independent single (large) oil cylinder ejection, ensure the same degree of concentricity of the shot material, avoid the non-synchronous phenomenon of double cylinder.
In this paper, the control function of the pressure debir thickness of 10 segments of the same technique is used to improve the width difference of the blanks because of the vertical extension, and effectively improve the uniformity of the product.
7. Die head: all are made of 38CrMoAlA,42CrMoV. 35CrMo, made of precision machining and heat treatment.
8. changing the mold, die ditto the machine can lift at the same time, and can move backward and forward (hydraulic control), easy to install all kinds of mold room, lift die head, facilitate production is sort of die and mould spacing, excess stock at least.
9. Low energy consumption: production speed is around 70%. Energy consumption is 46.8KW· h.

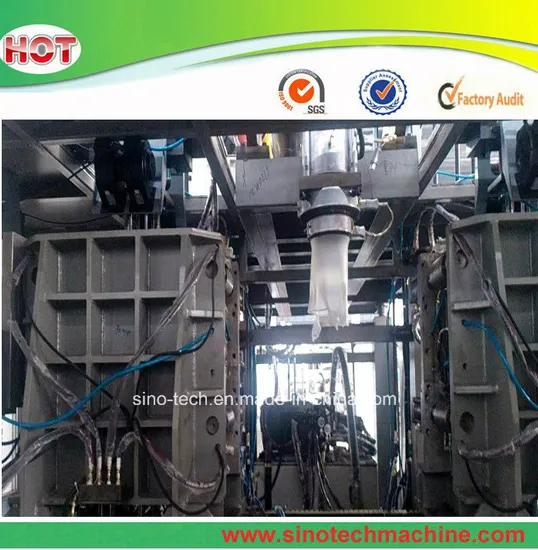

Detail Show
Production Shop
Packing & Shipping
1. The machine body is covered by waterproof film firstly, and then fixed on exported wooden pallets with bolts and wires.
2. The electric controlling parts and spare parts are loaded separately in wooden box.
3. The auxiliary equipments are packaged in wooden box as well.
4. All wooden material is fumigation certificated and safe for exporting to all over the world.
After-sales service
1. We offer you the free machine operation training happened in China.
2. Offering the free testing and installing of the machine in the buyer factory, but the fee of the visa, the ticket, food and living should be in the buyer's charge.
3. The spare parts of the machine and the auxiliary machine can be supply by us.
4. The guarantee of the machine is one year under the normal operation.
5. We offer the customer the technology for free for all life time.
