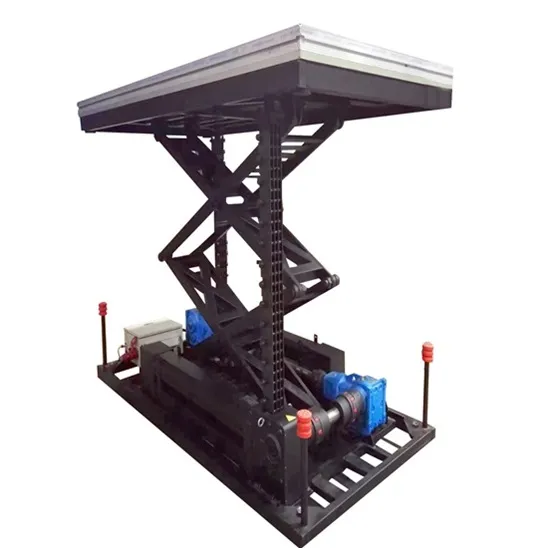

23A Rigid Chain Lift with National Invention Patent (ZL201010218464.1)

Product Description

Flexible Transmission Column Lift, the core driving device of lifting platform, is widely applied to fields such as automotive automation production lines, logistics and stage machinery platforms, etc., especially when the lifting platform needs to be lowered to lowest height with large stroke and heavy load. It has been successfully used at the opening and closing ceremonies of major domestic and foreign events. Rigid Chain (Flexible Transmission Column Lift) is a cutting-edge product designed to meet the needs of businesses seeking reliable, efficient, and precise vertical and horizontal motion solutions. This patented product is an ideal choice for industries that demand high performance and durability.
Features:
• Patented Technology: Includes two proprietary innovations, Rigid Chain (the Flexible Transmission Column Lift) and the Unguided Rigid Column Lift, ensuring superior performance and reliability.
• Compact Design: Space-saving structure ideal for confined installation areas.
• High Efficiency: Transmits power directly to the load, reducing energy consumption and improving operational efficiency.
• Uniform Lifting: Uniform lifting, durable and precise operation.
• Lifting Speed: Maximum lifting speed of 0.3m/s.
• Motor Compatibility: Compatible with direct drive by asynchronous AC dual-brake motors and servo motors with gearboxes, etc.
• Precision Positioning: Achieves highly accurate and stable positioning, and high synchronization accuracy
• Environmentally Friendly: Operates with minimal noise and eliminates hydraulic oil leakage risks.
Benefits:
• Versatile Applications: Widely used in theater engineering, automotive production, logistics, aerospace, and more, catering to diverse industry needs.
• Cost-Effective Operations: Reduces maintenance costs and downtime, leading to long-term savings.
• Enhanced Productivity: Ensures smooth and reliable operations, increasing overall efficiency in production and performance environments.
We believe that Rigid Chain offers an unbeatable combination of innovation, reliability, and value. If you have any questions about this product or would like to explore how it can enhance your operations, please don't hesitate to contact us.
At Shijiazhuang Alphascope Transmission Technology Co., Ltd., we are committed to providing exceptional customer service and helping our partners achieve their goals. Thank you for considering rigid chain. We look forward to collaborating with you and contributing to your success..


Design Principle
The working principle of Flexible Transmission Column Lift is to convert the horizontally moving chain links in the storage box into vertical movement, and the chain links form vertical rigid columns that bear vertical loads to achieve vertical lifting.

Product Parameters
Specifications of Flexible Transmission Column Lift range from the lightweight and portable 07A to the super-large load 77A, with load capacity from 600kg to 60 tons, stroke from 300mm to 16m.

Project Photo
Why us?
1. Flexible Transmission Column Lift has obtained a national invention patent, which solved the key technologies when the lifting platform needs to be lowered to lowest height with large stroke and heavy load. Our product has a reputation for smooth operation, accurate positioning, convenient combination of multiple lifting platforms, simple control, good synchronization performance, and high transmission efficiency.
2. Pre sales technical consultation: Based on the key parameter requirements you provide, such as stroke, load and speed, our engineers will assist in selecting and drawing to determine the most cost-effective solution.
3. Before shipment, you can come to the factory for on-site inspection or we can cooperate with real-time video inspection. After passing the inspection, we can arrange for shipment.
4. We provide free installation and debugging guidance, as well as training on operation and maintenance.
5. Warranty: One year warranty service for the entire machine.
6. 24-hour response and assist you in resolving issues ASAP.

A View of the Factory

Invention Patent Certificate
