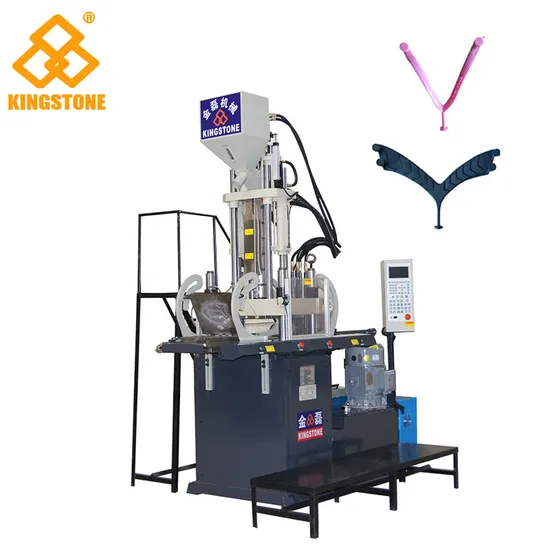

PVC Slipper Strap Injection Moulding Machine
| Negotiable | 1 SET (MOQ) |
Basic Info.
Model NO.
JL-118
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Name
Slipper Strap Making Machine
Products
Make PVC Strap for Slipper, Flip Flop
Workstations
One Station
Machine Weight
11 Tons
Package
Wooden Box Packing
Shipping Terms
EXW Dongguan, Fob Shenzhen,...
Guarantee
2 Years, The Longest Time in China
Injector
One Set
Workers Need
1 People
Mould
One Mould One Pair
Transport Package
Standard Export Package
Specification
2.8*2.5*2.9 m
Trademark
Kingstone
Origin
Dongguan City, China
HS Code
8477101090
Product Description
>> DescriptionMaterial:Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC,TR,TPU and TPR.
Product:Specialized in producing various kinds of one color outsoles for sport shoes, leisure shoes, slippers, sandals,man's and lady's shoes in general, etc.
>> Machine Feature
1. Conformed to human engineering in design, it features operational compatibility.
2. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.
3. The mold of Rotary machine and injection molding machine is also suitable for our machine using.
4. This machine equipped with only 7.5KW motor,which can saves a lot of electricity.
>> Machine Pictures
>> Machine Specifications
| Machine model | JL-118-2S | JL-118-1S | ||
| Mould-clamping Unit | ||||
| Work station | 2 | 1 | ||
| Clamping force | TON | 120 | 120 | |
| Opening stroke | MM | 210 | 210 | |
| Mould dimension | MM | 420x320 | 420x320 | |
| Height of injection nozzle | MM | 280 | 280 | |
| Injection Unit | ||||
| Injector | SET | 1 | 1 | |
| Screw diameter | MM | 50/55/60 | 50/55/60 | |
| Screw L/D ratio | L/D | 20 | 20 | |
| Max.injection volume | cm3 | 450-650 | 450-650 | |
| Screw rotation speed | R.P.M | 0-200 | 0-200 | |
| Electricity Consumption | ||||
| Heating power of injector | KW | 6 | 6 | |
| Hydraulic unit motor | KW | 7.5 | 7.5 | |
| Total electric consumption | KW | 13.5 | 13.5 | |
| Temperature control | Section | 3 | 3 | |
| Dimension and Weight | ||||
| Machine dimension | (L*W*H)MM | 2300*1000*2700 | 1300*1000*2700 | |
| Machine weight | KGS | 3000 | 1800 | |
| *Note:Above data only for reference. | ||||
>> Finished Products
The machine can produce single color pvc straps for slipper, flip flops.
>> Package & Shipping
Usually we packed this machine with wooden box.
