Used Tire Cutting Machine /Strip Cutter Automatic Tire Cutter Machine / Reclaimed Rubber Machine

Product Description

Product Description Small business automatic rubber recycling line for rubber mesh powder
Main flowchart of semi-automatic tire recycling production line:
Tire pre-processing machine for making 50*50mm rubber blocks:
Tire circle cutter--Tire strip cutter--Tire slice cutter--Rim separator
Rubber blocks--Main conveyor--Rubber crusher--Main vibrating screen machine--Big magnetic separator--Small vibrating screen machine--Small magnetic separator--Nylon fiber separator--Rubber powder and granule--Packing

Name	Function

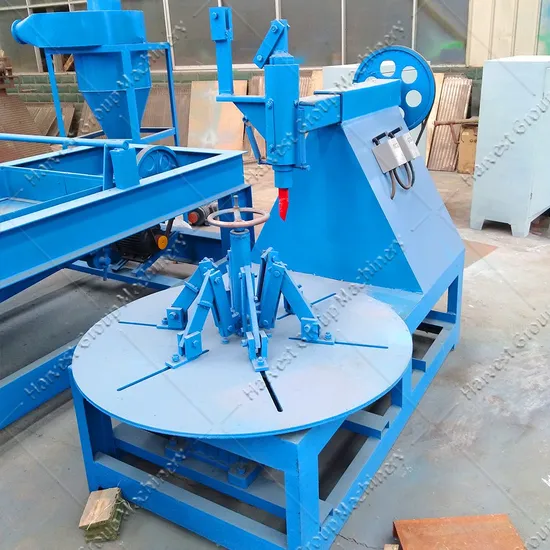

Tire circle cutter	To cut the tire ring
Rim separator	To remove the steel from tire ring
Tire strip cutter	To cut the tire into rubber strip
Tire slice cutter	To cut rubber stip into 50*50mm rubber block
Rubber crusher	To grind rubber block into smaller rubber size, such as granule, powder
Vibrating screen machine, magnetic separator, nylon fiber separator,etc	Auxiliary equipment of rubber crusher, to produce rubber granule and powder as customer request

Machine details in tire recycling line:
1. tire cutting machine to make 50*50mm rubber blocks
Tire circle cutter, tire strip cutter, tire slice cutter, rim steel separator
2.Rubber crusher:
the host equipment in tire recycling machine.
it used to grind the chunks into regular rubber size 5-40mesh as request.

Model	Drum diameter	Drum length	Front roll linear	Roll speed ratio	Max roller spacing	Motor power
XKP-350	350mm	500mm	17.6m/min	1: 2.5	8mm	37kw
XKP-400	400mm	600mm	21.6m/min	1: 2.5	8mm	45kw
XKP-450	450mm	760mm	25.3m/min	1: 2.5	8mm	55k
XKP-560	560mm	800mm	28.6m/min	1: 2.5	8mm	75kw
XKP560D	610mm	1000mm	42.5m/min	1: 2.5	8mm	132kw

3.auxilary equipment for rubber crusher:
Main vibrating screen machine, vice vibrating sreen machine, magnetic separator, main conveyor, nylon fiber separator
Finished products:
Rubber granule, powder, steel, nylon fiber,etc
Fully-automatic tire recycling production line:
Waste tire-- Tire debeader--Tire cutter--Tire shredder--Rubber crusher--Main vibrating screen machine--Big magnetic separator--Vice vibrating screen machine--Small magnetic separator--Nylon fiber separator--Rubber powder and granule--Packing

Name	Function
Tire debeader	To draw out tire steel from tire bead
Tire cutter	To cut bigger tire into small pieces
Tire shredder	To shred waste tire into 50*50mm rubber block
Rubber crusher	To grind rubber block into rubber granule or rubber powder
Vibrating screen machine, magnetic separator, nylon fiber separator,etc	Auxiliary equipment of rubber crusher, to produce rubber granule and powder size 5-40mesh as customer request

Our Advantages Application of final rubber:
