Lock Stitch Chain Stitch Shuttle Quilting Machine Multi Needle Mattress Production Manufacturer

Product Description

Product Description

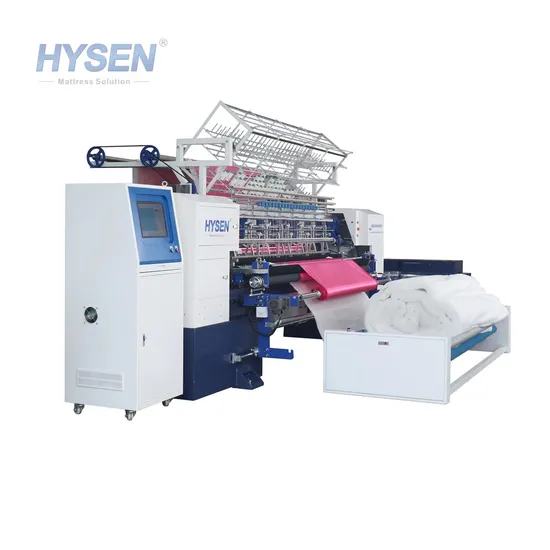

HSY96 Computerized Shuttle Multi-Needle Mattress Quilting Machine,It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast!
The needle rows are constructed with iron bar frame, which does not require additional oiling and avoids oil stained fabrics. This structure is more solid and not easy to be damaged, low maintenance cost.
Product Function
1.The needle rows are constructed with iron bar frame, which does not require additional oiling and avoids oil stained fabrics.
2.Advanced and practical thread breakage detection technology for the pasta thread, and automatic stop function for thread breakage.
3.Adopt CAD drawing method, precise graphics, convenient and quick.
4.Four-axis drive machine is more solid performance is more stable.
5.The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.
6.Computer speed regulation, needle speed can reach 1000 stitches per minute, needle distance can be set arbitrarily from 2mm to 6mm. Product Parameters

Model	HSY96
Dimension(l*w*h)	4750x2450x2550mm
Quilting Width	3300
Space Between Needle Rows	76.2
Space Between Needles	25.4
X-axis Movement Displacement	305
Quilting Thickness	≤30mm
Stitch Length	2‐6
Production Speed	70-180m/h
Model of Needle	14#/16#/19#
Main Shaft Speed	400-1000RPM
Power	6KW
Volatge	380V/50H 220V/60H
Gross Weight	4500Kg

Product Details

If you want to know more detailed products, please click
https://hysenmachinery.en.made-in-china.com/product-list-1.html

Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.	The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.
Multiple cross quilting (covering 360-degree and 180-degree quilting patterns)	Easy preparation of CAD drawings extremely precise.

Application Range:Mattress,Textiles,Clothing,Bed spreads,Bedding,Comforters and so on.
Our Advantages


Company Profile

Dongguan Hysen Machinery Co.,Ltd. specializes in manufacturing quilting machines, the company has standardized production plants,advanced production equipment,and a group of senior engineers and professional technical developers,forming a complete scientific research,design,production,sales and service system.We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.At present, the main products are quilting machine,automatic four-side hemming machine ,computerized panel cutting machine and tape edge machine , etc.Various products have passed the National Patent Office and CE certification.The products have been sold abroad to Asia, E-urope, America and Africa , etc.We hope we can build the good relationship with the customers all over the world.With cost-effective products and thoughtful warm service to exchange for trust and support, mutual benefit, create a win-win situation!

Packaging & Shipping

Certifications

FAQ
1.Q:Why Choose Our Company?
A:We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.
2.Q:How's the after-sale service?
A:We have a one-year warranty.And if you have any technical or other questions, you can always contact our engineers.
3.Q:ls the price offered changeable?
A. We offer reasonable price for every client, and the price is changeable according to purchasing amount.
4.Q: How about the quality?
A: The main subassembly and raw matetials are all supplied by large companies. Key parts are research and developed by our own staff. profesional assembly line work and strict quality test system can ensure your high quality reguirement.
5.Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer holding our own intemational Trade Depalment,for that we can beter understand customers needs and ofer a reasonable price.
