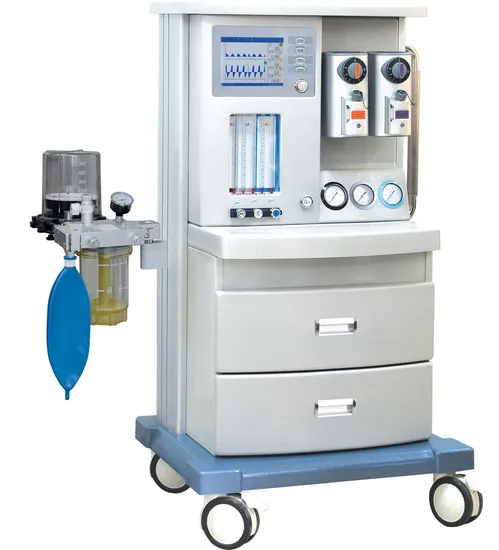

Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children
Basic Info.
Model NO.
JINLING 850
Certification
ISO13485
Group
Adult and Children
LCD Display
With LCD Display
Model Name
Jinling 850 Standard Anesthesia Machine
Display
8.4 Inch TFT Display
Tidal Volume
Adjustable Range: 20~1500ml
Inspiratory/Expiratory (I: E) Ratio
8: 1~1: 10
Two Vaporizers
Enflurane, Isoflurane or Sevoflurane (Halothane Op
Flowmeter Range
O2: 0.1~1L/Min 1-10L/Min; N2o: 0.1~1L/Min 1-10L
Vaporizer Concentration Ranges
0~5%
Back up Power Supply
at Least 4 Hours
Respiratory Rate
1~100bpm
Ventilation Mode
Ippv, Sippv, Vcv, Imv, Simv, Manual, Standby
Sigh
1 Sigh Breath in Every 80~120 Breaths
Simv Rate
1~20bpm
Inspiratory Plateauure
0~1 Second
Peep Range
0~20CMH2o (Electronically Controlled)
Inspiratory Pressure Trigger Range
-10~10CMH2o (Electronically Controlled)
Transport Package
Carton Packing
Specification
L: 940mm W: 790mm H: 1270mm
Trademark
JINLING
Origin
Nanjing, China
Production Capacity
200
Product Description
Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for ChildrenCommon Features Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect. High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor. Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia. Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C. Multi-parameter Patient Monitor: Optional.
Specifications
| Model | 850 (Standard Model) | |
| Display | 8.4 inch TFT display | |
| Flowmeter Range | O2: 0.1-10L/min | |
| N2O: 0.1-10L/min | ||
| Air: 0.1-10L/min | ||
| Ventilation Mode | IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby | |
| Back-up Power Supply | At least 4 hours | |
| Tidal Volume | Adjustable range: 10-1500ml | |
| Display range: 0-2000ml | ||
| Respiratory Rate | 1-100bpm | |
| Inspiratory/Expiratory (I:E) Ratio | 8:1-1:10 (capable of inverse ratio ventilation) | |
| PEEP Range | 0-20cmH2O (electronically controlled) | |
| Inspiratory Pressure Trigger Range | .-10-10cmH2O (electronically controlled) | |
| SIGH | 1 sigh breath in every 80-120 breaths | |
| Inhaled Oxygen Concentration Monitor | 21-100% | |
| SIMV Rate | 1-20bpm | |
| Inspiratory Plateau | 0-1 second | |
| Vaporizer Concentration Ranges | 0-5% | |
| Vaporizer Slots | Double PA-I type slots | |
