Dsh-100 Double Screw Cone Mixer Svzl Model Mixing Vertical Blender

Product Description

Welcome to Jiangyin Haixiang Machinery Co.,Ltd
We specialize in this industy have more than 10 years.
We are professional manufacturer of mixing machine,grinding machine,drying machine and other customized machines,we accept OEM,ODM. Products Description DSH Series Conical Screw Mixer Feature:
The rotation and revolution of the mixer is controlled by a set of motors and the cycloidal pinwheel reduction device. the mixer has the features of quick mixing and wide milling.
Operating Principle:
The material is made to conduct a compound in the cone because of the rotation and revolution of the screw. There are four main motions:
1.the revolution of the screw along the wall makes the material contact a circumferential motion.
2.the rotation of the screw makes material rise along the screw from the cone bottom.
3.the compound motion of the rotation and revolution of the screw make partial material be absorbed into screw cylindroid, while under the action of centrifugal force the partial material in the crew cylindroid discharge radially.
4.the raised material drops under its sole weight ,four motions cause convection,shearing,diffusion in the cone ,and thus material gets quickly and evenly mixed.
Technical Parameter:

Model	Total volume(Litre)	Mixing Time(min)	Motor Power(KW)	Overall size(mm)	Weight(kg)
DSH-300	300	6-10	2.2	ø900*1905	500
DSH-500	500	6-10	2.2	ø1160*2215	600
DSH-1000	1000	8-10	4	ø1450*2820	1300
DSH-2000	2000	8-10	5.5	ø1850*3450	1600
DSH-3000	3000	8-10	7.5	ø2050*3780	2500
DSH-4000	4000	8-10	11	ø2260*4210	2800
DSH-10000	10000	8-10	18.5	ø3080*5810	5600
DSH-15000	15000	8-10	22	ø3576*6310	6700

Additional configuration:
1.material:all stainless steel/contact parts stainless steel/carbon steel or other.
2.discharge valve:pneumatic flap valve/butterfly valve/segmented ball valve or other.
3.electric parts:ABB,Siemens,CHNT or other. 4. frequency converter:Delta,Siemens,Mitsubishi or other 5.PLC,HMI:Siemens or other. 6.Seal:packing seal,packing seal and pneumatic seal,mechanucal seal or other 7.motor: WNM,Siemens,ABB,Sumitomo or other. 8.reducer:cycloidal reducer,surface-hardening gear reducer or other. 9.bearing:HRB,NSK,SFK or other. 10.spraying system 11.heavy duty type ( loading your material into the mixer first and then start the mixer). 12.Platform: we build the platform for you or we design it and you build it locally. 13.Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so on.
Customizing according to client's specific requirement FAQ 1.what's your raw material?do you know the density of your raw material? for example flour,520g/L

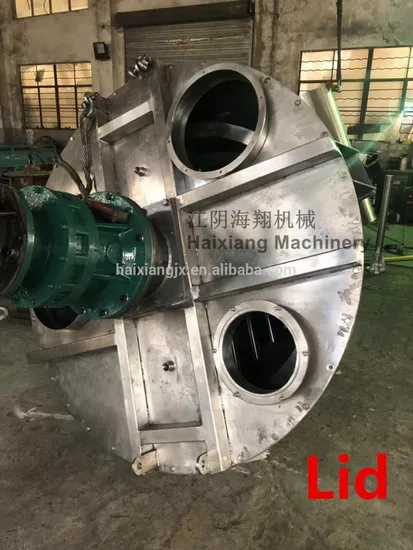

2.what capcity do you require for example 300kg/batch,500L/batch,500lbs/batch 3.what's your industry voltage in your factory?we only accept 3 phase power sullpy. foe example 380V,50HZ,3PH;220V,60HZ,3PH;we accept customize. 4.what's the material of the mixer do you require? for example carbon steel,contact parts stainless steel 304,all parts stainless steel 304,contact parts stainless steel 316,Titanium material. 5.is there any other requires for the mixer? for example heating and cooling jacket,spray system,CIP system or other. Details Images DSH Conical Mixer mixers need to be customized according to the different cases, the cases are as below:
1. Agglomerated material larger than 5mm is contained in the raw material
2. Bulk density of the raw material bigger than 3kg/l
3. Materials that are easy to get damp and not allowed to be exposed to the atmosphere, the mixer need to be vacuumized or
negative pressure
4. Fill compressed air to the mixer barrel, and keep the pressure
5. Material with a large friction coefficient, mixer need to do a special Wear-resistant surface treatment
6. Material is not allowed to contact with the metal surface during mixing process
7. Mixer need to be heated up to 200 Celsius degree
8. Heavy duty (loading material into mixer before turning on it) is required. supporting equipments for choice Jackie@ Recommend Products micro pulverizer grind material from 10mm to 40-320mesh.no screen design Vacuum Conveyor lift material from ground to the machine. table type universal grinder grind material from 10mm to 12-120mesh. Packing and Shipping Company Profile
