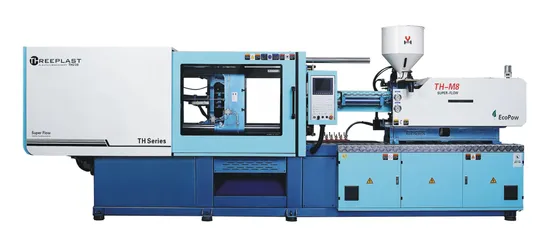

210 Ton Servo Energy Saving Injection Molding Machine Mobile Phone Cover Making Machine

Product Description

This Servo drive machine is designed For your Universal Processing applications this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a Nitrided +Alloy screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with a wide range of materials and with the most complex of molds .

Inovance Servo Drive Sumitomo Servo Pump Phase Servo Pump

TH238
Injection Unit		A	B	C
Screw Diameter	In	1.77	1.97	2.17
	mm	45	50	55
Screw L/D ration	L/D	22	20	18.5
Shot volume	in3	23.3	28.73	34.77
	Cm3	382	471	570
Shot weight (PS)	g	347	429	519
	oz	12.24	15.13	18.31
Injection Pressure	psi	30015	24360	20010
	Mpa	207	168	138
Max screw speed	rpm	171
Clamping Unit
Clamping Force	KN / T	2100 / 210
	U.S.ton	230
Opening stroke	In	18.7
	mm	475
Tie-bars distance	In	20.47 X 20.47
	mm	520 X 520
Max.mold height	In	21.65
	mm	550
Min.mold height	In	7.87
	mm	200
Ejector Stroke	In	5.51
	mm	140
Ejector force	KN	62
	U.S. ton	6.82
General
Pump power	Kw	30
	HP	40.2
Heating capacity	Kw	11.5
	HP	15.41
Oil tank Capacity	Litre	310
Machine Dimensions	In	214.57 X 59.06 X 90.55
	m	5.45 X 1.50 X 2.30
Machine weight	Kg	6700
	Lbs	14740
