Super Long Service Life Industrial Black Hydraulic High Pressure Braided Air Oil Water PVC Garden Excavator Rubber Hose Pipe Assembly Flexible Hydraulic Hose

Product Description

Henghua Hydraulic offers a large range of hydraulic hose & fittings suitable for use on various applications across multiple industries.

Our hydraulic hose range includes 1SC, 2SC, 100 R1-R17, 4SP, 4SH ,1SN,2SN,1-3TE& suction & delivery hose, along with compatible hose inserts and ferrules.

If you're not sure what type of hose you should be using for your application, please get in touch and we will provide you with the correct hose for the job!

We don't only supply loose hose and hose fittings we can also make bespoke hose assemblies to your given specification, get in touch with our friendly sales team to discuss your hose assembly needs today.

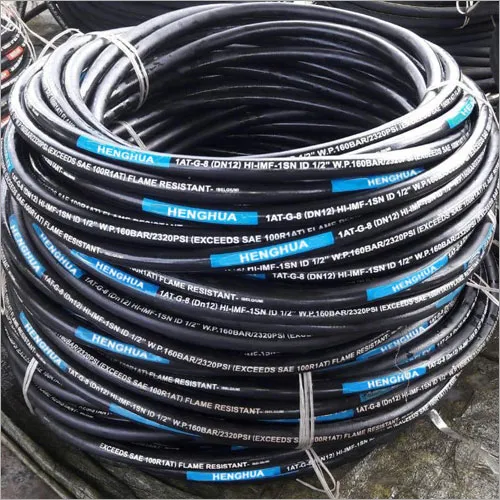

SAE 100 R1 steel wire reinforced hydraulic hose is suitable for hydraulic lines and usual industrial systems. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life.

Details of SAE 100 R1 steel wire reinforced hydraulic hose:
Structure: it is composed of three parts: tube, reinforcement and cover. Tube: high quality oil resistant synthetic rubber, making the hose work well in delivering oils. Reinforcement: one layer of high tensile braided steel wire, making the hose work well in high pressure environment. Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging and cut. Working temperature: -40 °C to +100 °C.

Hose code	Size		Dash size	ID		WD		OD
								A		AT
	mm	inch		min	max	min	max	min	max	max
SAE100R1-01	5	3/16	-3	4.6	5.4	8.9	10.1	11.9	13.5	12.5
SAE100R1-02	6.3	1/4	-4	6.2	7	10.6	11.7	15.1	16.7	14.1
SAE100R1-03	8	5/16	-5	7.7	8.5	12.1	13.3	16.7	18.3	15.7
SAE100R1-04	10	3/8	-6	9.3	10.1	14.5	15.7	19	20.6	18.1
SAE100R1-05	12.5	1/2	-8	12.3	13.5	17.5	19	22.2	23.8	21.5
SAE100R1-06	16	5/8	-10	15.5	16.7	20.6	22.2	25.4	27	24.7
SAE100R1-07	19	3/4	-12	18.6	19.8	24.6	26.2	29.4	31	28.6
SAE100R1-08	25	1	-16	25	26.4	32.5	34.1	36.9	39.3	36.6
SAE100R1-09	31.5	1-1/4	-20	31.4	33	39.3	41.7	44.4	47.6	44.8
SAE100R1-10	38	1-1/2	-24	37.7	39.3	45.6	48	50.8	54	52
SAE100R1-11	51	2	-32	50.4	52	58.7	61.9	65.1	68.3	65.9

Hose code	Working pressure		Proof pressure		Min burst pressure		Min bending radius	Weight
	MPa	psi	MPa	psi	MPa	psi	mm	kg/m
SAE100R1-01	21	3045	42	6090	84	12810	90	0.2
SAE100R1-02	19.2	2780	38.5	5580	77	11165	100	0.25
SAE100R1-03	17.5	2540	35	5075	70	10150	115	0.31
SAE100R1-04	15.7	2280	31.5	4570	63	9135	125	0.36
SAE100R1-05	14	2030	28	4060	56	8120	180	0.45
SAE100R1-06	10.5	1520	21	3045	42	6090	205	0.52
SAE100R1-07	8.7	1260	17.5	2540	35	5075	240	0.65
SAE100R1-08	7	1015	14	2030	28	4060	300	0.91
SAE100R1-09	4.3	620	8.7	1260	17.5	2540	420	1.3
SAE100R1-10	3.5	510	7	1015	14	2030	500	1.7
SAE100R1-11	2.6	380	5.2	750	10.5	1520	630	2

Hydraulic Hose	Reinforcement	Product Name
	One steel wire braided	SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17
	Two steel wire braided	SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC
	One/two wire braided	SAE R16
	Four steel wire spiral	SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH
	High flexibility nylon or thermoplastic	SAE R7,SAE R8
Industrial Hose	Steam hose,Water/Air hose,Fuel/Oil hose,Washer hose

Product Name	Chief Introduction
Air Hose	High strength synthetic yarn reinforced
Water Hose	High strength synthetic yarn reinforced
Oil Hose	Single/double synthetic yarn braided or spiraled
Welding Hose	High strength synthetic cord reinforced
Gas Hose(LPG Hose)	High tensile synthetic yarn braided or spiraled
Heat Resistent Hose	1 or 2 piles of fiber braid reinforcement
Air Condition Hose	Strengthen lining is weaving fiber

FAQ 1.What hose do you provide?
HENGHUA pipeindustry company offer hundreds of products. Main hose products:
high pressure steel wire braided hose,
high pressure steel wire spiral rubber hose,
steel wire winding hose,
flame retardant,resistance to high temperature and high pressure drilling hose
assembly,marine high pressure oil hose,
expansion pipe,
metal hose,
rollers,
rubber seals,etc
2.What are the product applications?
Mining, hydraulic support, hydraulic system, emulsification pump, construction machinery, coal mine underground water delivery, feng shui working face, water delivery, oil transportation, sand pumping, mud discharge, suction dust, exhaust gas, ash, engine gas pumping, Gas drainage / gas discharge / warm air duct
3.What are your advantages?
High quality, complete specifications, stock in stock. company has passed ISO9001:2015 international quality management system certification, ISO14001:2015 environment management system certification. HOSAS18001:2007 certification of safety management system certification,mining products safety sign,etc.
Products are sold well all over the country, and exported to India,British,Russia,Turkey,Germany, the United States and other countries,favored by the users.
