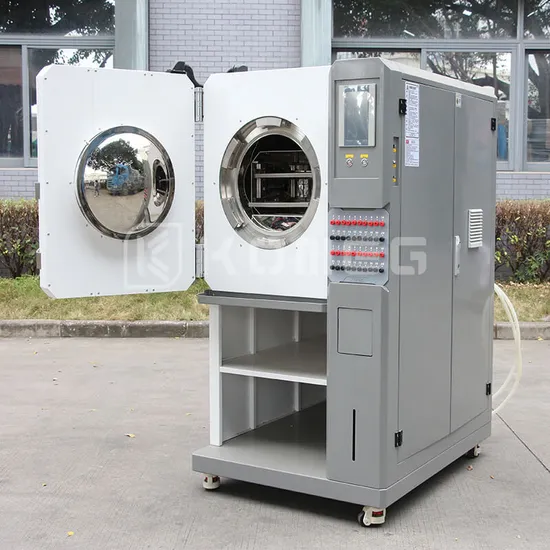

Hast High Humidity Environmental Test Chamber for Electronic Components

Product Description

HAST Chamber for Electronic Components IC Semiconductors Highly Accelerated Stress Testing
Product Description
Do you need a climate chamber includes high temperature, high humidity and high pressure testing conditions?
HAST Chambers, also known as Highly accelerated stress test chambers, are essential for conducting environmental tests on electrical and electronic components. The HAST Chamber is specifically designed for testing semiconductors, IC packing, and plastic sealed parts.
This is our fifth generation HAST chamber. It is constantly improving in both technology and design, and its operation is becoming more and more stable. Please feel free to contact us for consultation.

Product Parameters

Model No.		KM-HAST-35	KM-HAST-55
Interior Size (mm)	Diameter(Φ)	350	550
	Depth(D)	450	650
Exterior Size (mm)	Width(W)	730	1150
	Height(H)	1630	1550
	Depth(D)	1100	1400
Temperature range		+105ºC~+135ºC
Humidity range		65%RH to 100%(Unsaturation control) 100%RH (Saturation control )
Pressure range		0.05~0.3MPa Gauge pressure: +0.2~200kPa Absolute pressure: 100 ~ 300kPa
Temperature fluctuation		± 0.5°C
Temperature uniformity		≤ 3.0°C
Temperature deviation		≤ ±3.0°C
Humidity fluctuation		±3.0% RH
Humidity deviation		±5.0% RH
Pressure deviation		≤ ±2kPa
Heating up rate		±25ºC~+135ºC within 45 min (average in whole process) ( no-load,no heating)
Pressurization time		Normal Pressure ~200kPa within 20 min
Power supply		220V AC 1Ø 50Hz
Noise		≤68dB (1 meter distance from the door)
Safety protection device		NFB(No fuse breaker), over pressure, over heat and over current protectors for compressor, over temperature protectors, over load protector of fan, dry heat protector,short of water protector

With more than 30 years of experience, our team consists of highly qualified, experienced and knowledgeable industry professionals that can meet your customized needs and work with you closely to take your project from idea to reality. Whether you are looking for a standard chamber or a customized one, no matter what industry you are in, such as electronics, automotive, renewable energy, testing laboratory, semiconductor, telecommunications, aerospace, defense, medical etc., you can rely on KOMEG to have the required and bespoke solution.
We promise that every one of our environmental chambers can meet the quality standards and provide a 100% quality guarantee for 12 months. And we have a strong commitment to after sales support, which is delivered via our expert team of factory-trained technicians and local agents.
