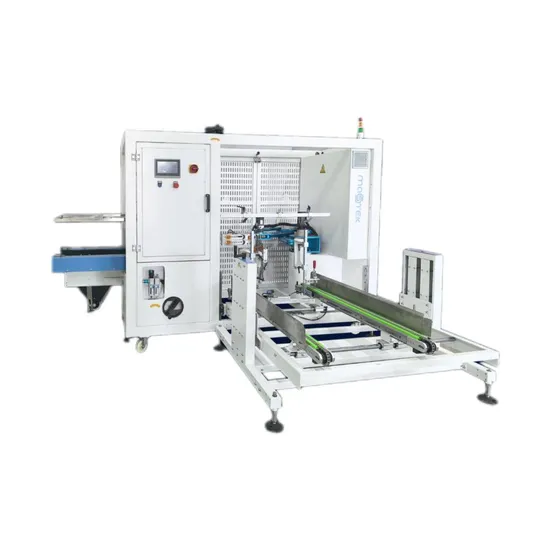

Robot Arm Carton Erector Carton Forming Sealing Unpacking Machine Carton Erector Machine
Basic Info.
Model NO.
MO-02
Packaging
Cartons
Automatic Grade
Automatic
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Usage
Outpacking
Type
Sealing Machine
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Condition
New
Weight
600kg
Working Speed
20-25 Box/Min
Certification
CE
Voltage
110V/220V/50/60Hz
Transport Package
Steel Frame+Wood
Specification
2702*2226*1835mm
Trademark
Mastek
Origin
Jiangsu, China (Mainland)
HS Code
84224000
Production Capacity
100 Set/Sets Per Month
Product Description
| TECHNICAL DATA | STANDARD FEATURES | ||||||||||
| Performance: | Cylinder | AIRTAC | |||||||||
| Throughput Speed | 20-25 Cases/Minute | Motor | ALL SERVO Motor control | ||||||||
| Sensor | SICK | ||||||||||
| Case (Outside Dimensions) | 200-450 mm L 150-350 mm W 150-350mm H | PLC | INOVANCE | ||||||||
| Touch Screen | IoT Screen | ||||||||||
| Pre-caution for empty carton box | |||||||||||
| Case Types | Pre-caution for Tape used up | ||||||||||
| Wall Types | Single & Double Wall (test for multiple wall) | NON -STOP load magazine design | |||||||||
| Safety door system | |||||||||||
| Bottom Seal | Vertical forming box output | ||||||||||
| Tape | 48mm/60mm/72mm | ||||||||||
| Service Requirements | Certification | CE | |||||||||
| Air Supply | 6 Bar (80 Psi) | Machine Warranty | 3 years | ||||||||
| Dedicated Electric | 220V, 1ph, 50/60Hz | ||||||||||
| Machine Data | Optional | ||||||||||
| Magazine infeed Capacity | 100 cases (approximate) | Bottom seal | Hot glue | ||||||||
| Weight | 600 kg | Output conveyor height | if over 600mm | ||||||||
| Dimensions | 2702*2226*1835mm L*W*H | ||||||||||
| Outfeed Pass Height | 500 mm +/- 30 mm | ||||||||||
| Engineer Drawing |
| FEATURE |
| Advanced load magazine system 1.NON STOP Loading Magazine design: Replenish blanks while machine operates. No need to stop machine to load magazine, making it more convenient for the operator and improving work efficiency. 2.The chain drives the empty box forward so that the box is always in the correct position. 3.Simple and fast magazine adjustments |
| Advanced Robot Arm Carton Forming System 1. Reliable Servo motor drives a robot arm with 8pcs powered Sucker to keep the blank in the correct position after it leaves the magazine. 2.The robot arm form the box by length and width on both side. Both leading panels were firmly held in place. Automatic 90 degree forming design keeps the box 100% square at all times. |
| Advanced output system 1. MO-02 output belt is driven by a servo motor system, making the box move more smoothly before folding the bottom. 2. MO-02 use a large folding plate, fold the bottom folding plate to align before sealing. |
| Advanced tape sealing system 1.MO-02 tape head dispenser outside design to make changing paper tape easier and safer. 2.MO-02 Pre-caution for Tape used up, which can monitor the status of the tape in time. |
