Aluminum Conductor PE XLPE Insulation Electric Twisted Overhead Service Drop ABC Cable

Product Description

Product Discription
Application
The cables are designed for aerial power lines and room-entrance wires with U0/U up to and including 0.6/1kV, 6/10kV.
Aerial Bundle Cable(ABC Cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level safety and reliability, lower power losses and ultimate system economy by reducing installation , maintenance and operative cost.
Standards
ASTM, IEC, NFC, GB/T

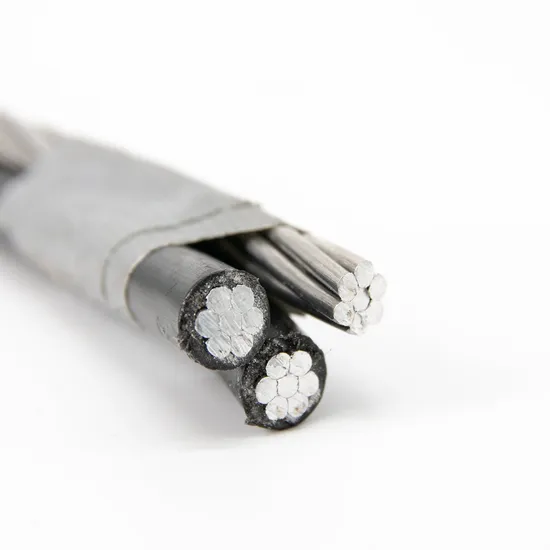

Construction & Detailed Images Conductor: Aluminum conductor, round stranded conpressed(RM). Insulation: XLPE or PE or PVC
Models and descriptions
Service drop cable:
Aluminum core PE insulated aerial cable
Aluminum core XLPE insulated aerial cable
Secondary UD cable:
Aluminum alloy core PE insulated aerial cable
Aluminum alloy core XLPE insulated aerial cable
Covered line wire:
Copper core PE insulated aerial cable
Copper core XLPE insulated aerial cable
Core Number & Cross section area
Including 1, 2, 3, 4, 5, 1+1, 2+1, 3+1, 4+1 cores and so on, from 10mm2 to 240mm2 as follows, 10mm2 16mm2 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2 150mm2 185mm2 240m2.
Part of Technical Data:

Goods Description	Specification mm2	Conductor No./mm	Insulation Thickness mm	Cable Overall Diameter mm	20ºC Conductor D.C. Resistance Ω/km	Cable Weight kg/km
ABC Cable	1x10	7/1.35	1.0	5.8	3.08	41
ABC Cable	1x16	7/1.71	1.2	7.2	1.91	65
ABC Cable	1x25	7/2.16	1.2	8.4	1.20	93
ABC Cable	1x35	7/2.55	1.4	9.8	0.868	129
ABC Cable	1x50	7/3.00	1.4	11.1	0.641	170
ABC Cable	1x70	19/2.16	1.4	12.8	0.433	233
ABC Cable	1x95	19/2.55	1.6	14.8	0.320	316
ABC Cable	1x120	37/2.05	1.6	16.2	0.253	388
ABC Cable	1x150	37/2.28	1.8	18.1	0.206	485
ABC Cable	1x185	37/2.56	2.0	20.2	0.164	600
ABC Cable	1x240	37/2.95	2.2	22.8	0.125	783

Packing and Delivery
Woven Bag wrapping(soft packing/rolls) size:
Advantages: low price, light weight and space saving.
Disadvantages: workers are inconvenient to use (cannot roll), production is slightly troublesome, and labor costs are slightly higher.
Wooden Drum Packing Details: The wooden drum will be fumigated. In order to prevent rolling, it will also be reinforced with environmentally friendly materials. This packaging method is easy to construct, easy to install, easy to produce, but slightly more expensive.
Wooden Steel Drum: Packing Details: This wooden-steel drum is suitable for cables with an outer diameter of more than 30mm. Packing Details: Usually use international wooden drums and rolls, can also as buyer's requirements. The Package size will according to the cable's size.
Our Factory
The annual production capacity is 1,450,000.00 km cables and wires. In our factory, there are above 300 staffs totally including workers and supervisors, besides, we also have our own rights for importation and exportation. Our main products are Bare Conductor(acsr, acar, aaac, aac), ABC Cable(aerial bundled cable), Electrical Wire, and Power Cable.
Certifications
Our company has passed ISO 9000 quality management system certification, ISO 9000 occupational health and safety management system certification, ISO 9000 environmental management system certification, CCC China National Compulsory Product Certification, CE Certificate of Conformity, and Rohs.
International Fair
We participate in the Canton Fair and foreign exhibitions every year. Our products sales network has covered more than 20 provinces and municipalities in China. Most of products are sold to many countries for overseas marketing including the following areas like South America, North America, Latin America, South Asia, Southeast Asia, Africa, and Europe etc.
