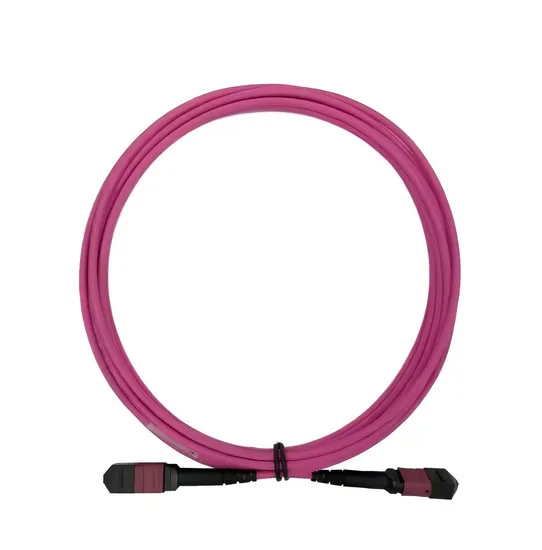

Kexint 24 MTP MPO Patch Cord 5m Om4 Magenta Low Loss 0.3dB
| US$12.56 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
KXT-24MTP OM4 5M
Customized
Customized
Application
Metal Recycling Machine, Metal Cutting Machine
Place of Origin
Guangdong
Brand Name
Kexint
Certifications
CE/RoHS/ISO9001
Model Number
Kxt-24MTP Om4 5m
Minimum Order Quantity
1, Negotiation
Packaging Details
The Bags Are Packed, Then The Boxes Are Packed, an
Delivery Time
8
Supply Ability
1000000 Meters Per Week
Price
Negotiation
Transport Package
Inner Carton+Outer Carton
Specification
850/1300nm
Trademark
KEXINT
Origin
Guangdong, China
Production Capacity
500+PCS+Day
Packaging & Delivery
Package Size
20.00cm * 10.00cm * 6.00cm
Package Gross Weight
2.000kg
Product Description
Product DescriptionMPO / MTP patch cord are designed to high density multifibers solutions,fit for different installation environment and easy to install between the trunk line,data centers and buildings.Our trunk cables are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with GR-1435-Core, GR-326-CORE for patchcords, GR-1209-CORE and GR-1221-CORE Compliance
Application
MPO patch cords are widely used in many fields, including data centers, telecommunication networks, local area networks and wide area networks, wiring in communication base stations, wiring in distribution boxes, optical link interconnection in optical active devices, high-performance computing, medical and scientific research instruments and aerospace, etc.
Specification
| Item | MPO/PC/F-MPO/PC/F-OM3-24B-3.0-5M-OFNP-AQUA-B |
| lnsertion loss | PC<0.7 dB |
| Return loss | PC>25 dB |
| Insert-pull test | (500 times)<0.3 dB |
| Operation temperature | -40ºC ~ +80ºC |
| Anti-tensile force | 15kgf |
End face geometric parameters and standards:
| Requirement | MM (50 & 62.5/125) | SM(APC) |
| Surface inclination angle (X) | -0.2 °/0.2° | -0.2° / 0.2° |
| Surface inclination angle (Y) | -0.2°/ 0.2° | 7.8°/ 8.2 ° |
| Fiber height | 1000nm - 3500nm, | 1000nm - 3500nm, |
| Maximum height difference of all optical fibers | <750nm | <600nm |
| Core height(nm) | -50-300 mm | -50-300 mm |
