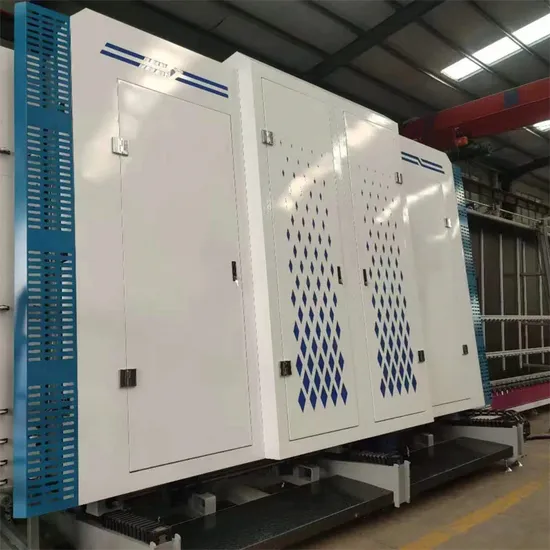

Insulating Glass Vertical Production Line Crossbeam Gas Filling Production Line

Insulating Glass Vertical Production Line Crossbeam Gas Filling Production Line

US$50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
JYHLCH2535
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Total Power
45.0kw
Working Air Pressure
0.5~0.8MPa
Transfer Speed
8~45m/Min
Glass Thickness
3~18mm
Transport Package
PE
Specification
2500*3500
Trademark
JY
Origin
China
HS Code
8401200000
Production Capacity
500sets/Year

Product Description

Automatic Insulating Glass Crossbeam Gas Filling Production Line

JYHLCH-2025
JYHLCH-2030
JYHLCH-2535
JYHLCH-2845
Total power
40.0kW
41.5kW
45.0kW
45.0kW

Working air pressure
0.5~0.8MPa
0.5~0.8MPa
0.5~0.8MPa
0.5~0.8MPa
Max. glass size
2000×2500mm
2000×3000mm
2500×3500mm
2800×4500mm
Min. glass size
280×450mm
280×450mm
280×450mm
280×450mmn
Working direction
Right → left or Left → Right Right → left or Left → Right Right → left or Left → Right Right → left or Left → Right
Glass thickness
3~18mm
3~18mm
3~18mm
3~18mm
Transfer speed
8~45m/min
8~45m/min
8~45m/min
8~45m/min
Overall dimension
21000×2000×3200mm
24000×2000×3200mm
26500×2000×3700mm
31500×2000×3700mm
Weight
8000kg
9000kg
11000kg
13000kg

Machine Performance Introduction 1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency.
2. Whole machine adopts HMI touch screen, with memory function. .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner.
4.Using two sets of independent sealant supply system , two kinds of sealants switch fast ,in one-button operation easily (Model II),save time to change sealant. .
5.The width of machine is 1.5m ,small floor area, save space. 6.The sections is one production line, it can prestore three pcs glass to improve the efficiency effectively. 7.The smallest insulating glass size can be processed is 300*300mm. 8.Equipped with anti blocking device in the mixer, easy to clean. 9.Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable,counting speed is fast ,sealant output with high precision ,surface with high smoothness.. . 10.Shaft transmission to make the glass being transferred smoothly with accurate positioning.. 11.Chain transmission belt ,transport glass smoothly and reliably, and can be flexibly connected to ERP MES.
12.The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability. 13.Suitable for triple glazing. 14.Conveying wheel on backboard adopts embedded wheel, to make sure the glass be transported smoothly. 15.Equipped with high speed positioning function, glass can be located accurately when transport fast.
16.Touch screen adopt ethernet communication, sensitive operation, suitable for popular operation. 17.Keep machine service and upgraded timely with our own R&D departments. 18.22 years experience in extruding systems to make the system more stable. 19.High pressure non-return valve to make the washing speed faster,save sealant and avoid blocking. 20.All low-voltage appliance adopt France famous brand to make the performance stable. 21.Servo transformer with long life service ,low power consumption. 22.Timing sealant discharge function to prevent blocking the mixer. 23.Sealant pressure real-time display on touch screen,convenient to adjust. Product Description
Our Advantages
1.We provide professional glass production solutions
2.Professional online service team, any mail or message will reply within 24 hours.
3. We have a strong team provide wholehearted service to customer at any time.
4.We insist on Customer is Supreme, Staff toward Happiness.
5.Put the Quality as the first consideration.
6.OEM & ODM, customized design/logo/brand and package are acceptable.
7. Advanced production equipment, strict quality testing and control system to make sure superior quality.
8. Competitive price: we are a professional glass machine manufacturer in China, there is no middleman'sprofit, and you can get the most competitive price from us.
9. Good quality: good quality can be quaranteed, it will help you keep the market share well.
10.Fast delivery time, we have our own factory and professional manufacturer, which save vour time to discuss withtrading companies. We will try our best to meet your request.
Main Product
Production workshop
Company Profile
Packaging & Shipping
Certifications
FAQ
1.Are you manufacturer?
Yes, we are the professional manufacturer with more than 15 years experience.
2.Can the machine change to our voltage?
Yes, we can customize our machine to your local voltage.
3.How long is the equipment warranty?
One year.wearing parts not included.
Free accessories within one year. but clients should afford courier fees.
24 hours on line service, free technical support.
4.What operating language is the machine?
Standard English, can also be changed as required.
5.How long is the delivery time?
20 days after receive the deposit,if customerized equipment,it should be discussed with our sales.
