US$1.00-47,240.00
|
1 Set
(MOQ)
|
Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Computerized
Computerized
Certification
CE, ISO9001:2008
Injection Weight
656-916g
Space Between Tie Bars
605 X 605 mm
Products
Pet Bottle Preform
Transport Package
Plastic Film Cover, Wood Pad, Wrapped Film
Specification
6.4 x 1.6 x 2.4 M
Production Capacity
100PCS/Month
Product Description
300ton Plastic Injection Molding Machine (Model: ZX-300)

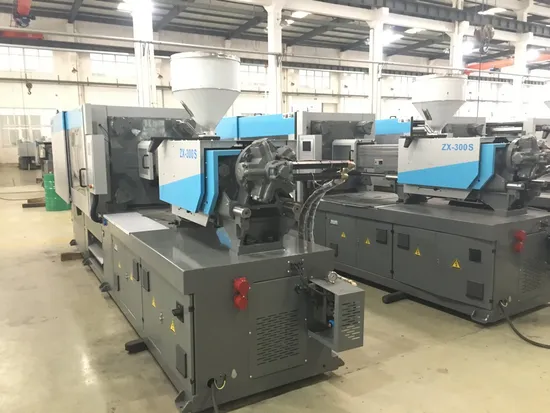

1,Photo
2, Technical Parameter
ZX-300 | Injection Unit Date | | A | B | C |
Screw diameter | mm | 55 | 60 | 65 |
Screw L/D ratio | / | 22 | 20 | 18.5 |
Theoretical shot volume | cm3 | 713 | 848 | 995 |
Shot weight(PS) | g | 656 | 780 | 916 |
Injection rate | g/s | 220 | 262 | 308 |
Max.screw speed | rpm | 195 |
|
Clamping Unit | |
Clamping force | KN | 3000 |
Toggle stroke | mm | 580 |
Space bettween tie bars | mm | 605x605 |
Min.mold thickness | mm | 220 |
Max.mold thickness | mm | 640 |
Hydraulic ejection stroke | mm | 180 |
Hydraulic ejection force | KN | 53 |
|
Others | |
Hydraulic system pressure | Mpa | 17.5 |
Pump motor | kw | 32 |
Heating capacity | kw | 17.2 |
Oil tank capacity | L | 450 |
Machine dimensions | m | 6.4x1.6x2.4 |
Machine weight | Ton | 8.5 |
3, Platen Dimension
4, Machine Dimension (ZX-300)
5, Technical Characteristics
7, Contact Information
Contact Person: Mr. Tony
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012
Mobile: +86 13656841356
Tel: +86 574 87082687
Website: zhenyuemachinery.en.made-in-china.com
Remark:
1, the company reserves the right to revise all information (including word, photo) above.
2, due to technology development, the machine design or specification would be changed without any prior notice.
3, if you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.
