300kw 375kVA Vman Natural Gas Generator

300kw 375kVA Vman Natural Gas Generator

US$45,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YDNV-300
Engine Model
Dt22
Rated Voltage
220/380V
Rated Current
540A
Speed
1500/1800rpm
Frequency
50/60Hz
Certificate
CE ISO Saso
E-Throttle Brand
Woodward
Regulator Brand
Madas
Gas Mixer Brand
Impoc
Spark Plug Brand
Torch
Alternator
Brushless Alternator
Transport Package
for Open Type, Packing with Plywood Case; for Sile
Specification
Gas engine
Trademark
YDNPOWER
Origin
Weifang China
HS Code
8502200000
Production Capacity
500 Sets /Month

Product Description

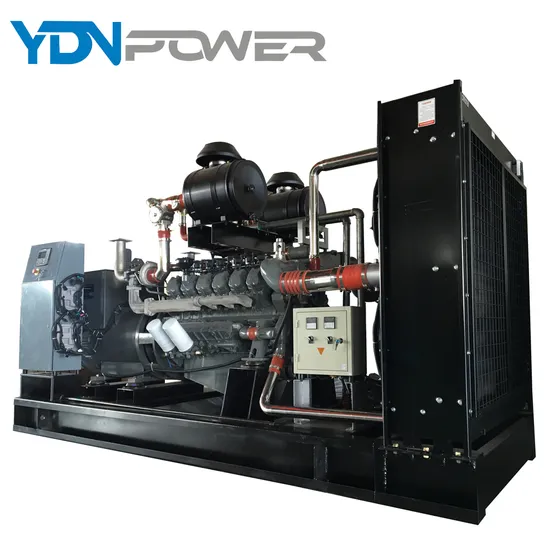

300kw 375kva VMAN Natural Gas Generator Set
Genset Model YDNV-300
Rated Power (kW/kVA) 300/375
Rated Current (A) 540
Dimension (mm) 3420*1700*2100
Gross Weight (kg) 3800
Natural gas Engine Brand VMAN
Model DT22
Configuration Four-stroke,Water-cooling,Direct Injection,12V-type
Rated Power (kW/kVA) 360/450(CH4 no less than 85%)
Rated Speed (rpm) 1500
Cylinder No. 12.V
Bore*Stroke (mm) 128×142
Cooling Method Water cooling
Oil Consumption (g/kw.h) 1
Gas Consumption (m3/h) ≤90@100Load
Starting method 24V DC
Gas control system E-Throttle BOSCH®(German Brand)
MIXER IMPCO®(USA Brand)
Regulator MADAS®(Italian Brand)
Spark plug TORCH®(China Brand)
Water temperature BOSCH®(German Brand)
Alternator Brand FARRAND
Model FLD-300
Rated Power (kW/kVA) 300/375
Material High performance 100% copper
Efficiency 94.50%
Voltage Regulation <=±1
Voltage Regulation Brushles, Self Excitation
Insulation Class H
Control System Brand SMARTGEN
Model HGM6110N
Working Voltage DC8.0V to DC35.0V, continuous
Overall Dimensions (mm) 197*152*47
Panel Cutout (mm) 186*141
Working Condition Temperature: (-25~70)ºC; Humidity: (20~90)%
Weight 0.56kg
Requirments for natural gas 1.Methane should be at least 85%
2.The natural gas temperature should be between 0-60 ºC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 8-14KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
why choose us
1,We have passed ISO9001 and EU CE certification, and effectively improved the quality of our products
2,You have our promise- 24*7 Lifelong after-sales service
3,10000+cases enable us to have rich experiences in troubleshooting. We can provide reliable and fast technical support for customers.

FAQ Q1: Are you a trading company or a manufacturer?
Answer: We are a factory
Q2: What is your power range of your diesel generator?
A: We can provide 10KW-1500KW diesel generator and comprehensive power supply solutions for you
Q3: What is the delivery time?
A: 4-6 weeks
Q4: What is your minimum order quantity(MOQ)?
A: 1 set.
Q3: What are your terms of payment?
Answer: 30% by TT in advance and 70% balance before shipment.
Q4: What is your warranty period?
A: Our warranty period is 1 year or 1000 hours, whichever comes first. But according to some special items, we can extend the warranty period.
Q5: Do you provide OEM services?
A: Yes.
Q6: How can I trust you?
A: If you are not satisfied with the pictures, videos, boarding reports, load tests, customer experience and sales staff's understanding of the generators you are interested in, we invite you to visit our spacious storage yards and stores to witness your generators. Carry out a load test and check our professional operations here.
Q7: What should I do after I receive the generator set?
Answer: Please read the operation manual carefully after obtaining the generator.
The generator is attached with the user manual. With Operation, Installation, Maintenance and Repair Guide.
