Aspherical Optical Lens, Glass/Fused Silica/Quartz/Infrared Material, Customized CNC Polished

Product Description

CNC Polished Optical Aspheric Lenses for Lens Assemblies

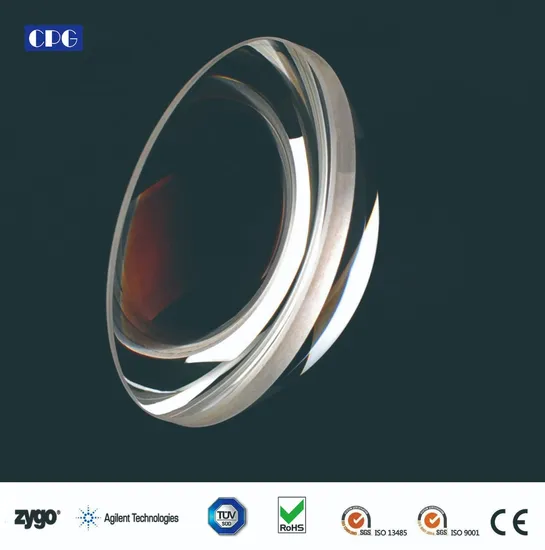

Aspheric Lenses
CPG utilizes diamond point turning for high accuracy aspheric and toroidal lenses. Carefully controlled, leading-edge process technologies and metrology techniques, including interferometry and profilometry, results in consistent high laser damage threshold lenses that are suitable for demanding applications. These CaF2, ZnSe and ZnS aspheric lenses are intended for demanding applications that require broadband or multispectral operation from the visible through the infrared, such as rangefinding and target designation.
They offer a unique combination of benefits including high surface accuracy to achieve small focused spot sizes and low surface roughness for minimal scatter and loss.
They also feature sophisticated, multi-layer thin film coatings that deliver multispectral performance, high laser damage threshold, and are produced with a densified structure to yield exceptional environmental stability.
And because these advantages can be maintained even with unusually thin lens profiles, these aspheres can deliver important weight advantages for man portable, field and airborne applications.
Specification

Items	Description
Aspheric Lens	Material:	Schott N-BK7,Silicon,Germanium,II-VI ZnS,II-VI ZnSe or other optical materials
	Range of diameter(mm)	Dia.2.5- Dia.1000
	Tolerance of diameter(mm)	+/-0.1, +/-0.01, +/-0.005 etc
	Tolerance of thickness(mm)	+/-0.1, +/-0.05, +/-0.01 etc
	EFL tolerance	+/-1%,+/-0.5%,etc
	Asphere figure error P-V	<1µm,<3µm,etc
	Surface form deviation RMS	≤0.5 µm,etc
	Surface quality	20-10, 40-20, 60-40 etc
	Clear aperture	>90%
	Chamfer	as required
	Coating	Customized

Interferograms with Zygo Other inspections: Other opticss CPG handle
Why CPG
COST, PRECISION, G+ SERVICE
CPG optics has over 20 years experiences in optics industry, we provide a variety of different material fabricating and coatings, and we always aim to be a trustful supplier for all the customers.
Our in-house optical metrology capability ensures the all the requirements for the parts are within the specs:
Zygo Interferometer Wyko Cylinder Interferometer Agilent Cary 7000 Spectrometer Optical Bench Moller-wedel Goniometer Taylor Hobson Profiler Mitutoyo Projector Zygo Roughness Meter CMM Stress Measuring Satisloh Spherometer Trioptics Centering CPG is also an ISO: 9001&14001 certified manufacture, we deliver fast and provide best cost performance ratio for our customers.
Certificates & Patents
Packaging&Shipping Package detail:
Optics are packed with Capacitor paper, white paper, custom-made plastic containers etc
Customized safety green carton
FAQ:
1. Are you a manufacturer or trader? Can I visit your factory or office?
We are a manufacturer. We have factories in Jiangsu and Zhejiang provinces.
In order to provide better and in-time services, we set up branches in US, Germany and Netherlands.
You are welcome to visit our factories and offices at any time.
2. What's your payment term?
T/T, D/P, Letter of Credit, Western Union etc.
3. What's your minimum order quantity for this item?
1 unit.
4. Could I get free samples before making an order?
Your samples fee will be refunded when you place volume order.
5. Can I get a catalog?
Of course, please contact our salesman to get a catalog.
6. What's the lead time?
15-30 days, it is up to your quantity and specification and our stock.
If in stocks, once you make the payment, your products will be sent within 2 days.
7. What's your price list and discount?
The above price is our reference price, if you would like to know more our exact and discount policy, please email us or call us directly.
8. Can you OEM or ODM?
Yes, we accept all OEM and ODM.
9. Do you give a warranty of your products?
Yes, if there is a quality problem, please kindly provide the pictures to show the problem by email.
We will rework or provide the replacements to you at our cost according to actual conditions.
