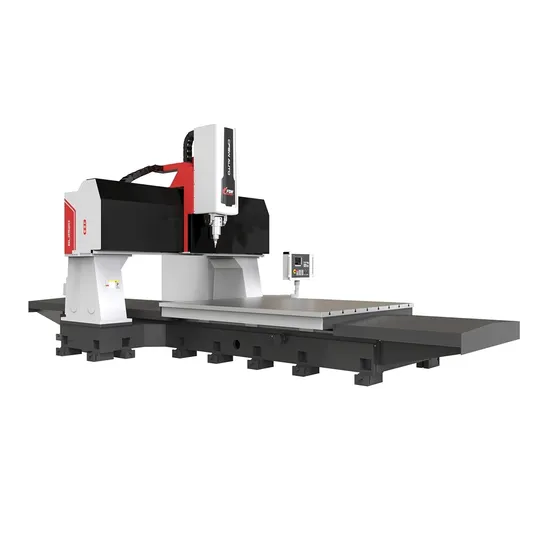

Bl2520-Fsw Customized Copper Aluminum Alloy Stir Friction Welding Machine

Product Description

Product Description
FRICTION WELDER
Friction Stir Welding equipment leads to the innovation in Friction Stir Welding technology, it is suitable for processing various metals such as aluminum alloys, magnesium alloys, copper alloys,s, and die-cast components. It can process multiple welding tasks, including welding large metal components, making it an efficient, environmentally friendly, and versatile welding device. With intelligent systems like constant pressure control and data acquisition management, it achieves automated welding with excellent technical and economic productivity. FSW equipment is widely used in fields such as aerospace, high-speed rail, vacuum chambers, new energy vehicles, and energy storage.Product Parameters

WELDING MACHINE SPECIFICATION
Product Name	Spin Welding Machine
Keywords	Welding Machine
Model	FSW-BL2520
Workbench	T-slot/M16 matrix threaded holes
Equipment footprint (host)	7500X3460X3200mm
Equipment footprint (outer cover)	7500X3460X3200mm
Gantry pass width	2400mm
Table size	2500(X)X2000mm(Y)
XYZ axis travel	2500X2000X500mm
X axis moving speed	0-10000/6000*mm/min
Y axis moving speed	0-10000/6000*mm/min
Z axis moving speed	0-5000/3000*mm/min
C axis speed	20rpm
Total equipment weight	About 15t
Total equipment power	About 25kW/35kW

Detailed Photos
ADVANTAGE-1
Minimal Deformation-Solid-state welding results in minimal microstructure changes in the heat-affected zone and lower residual stress, leading to less deformation of the welded workpiece.ADVANTAGE-2
Superior Performance weld nugget area consists of high-density precipitated phases, forming equiaxed recrystallized structures with strength close to that of the parent material. It can weld materials sensitive to hot cracking and is suitable for dissimilar material welding.
ADVANTAGE-3
High Cost-Effectiveness and Widely Used-No need for welding wire, oxide film removal, or shielding gas, resulting in low costs. Suitable for flat plate butt welding, lap welding, large frame structures, large cylinder manufacturing, etc.ADVANTAGE-4
High Automation Level-he process is convenient for mechanization and automation, with low energy consumption, high efficiency, and minimal environmental requirements.ADVANTAGE-5
Environmentally Friendly and Safe-The welding process does not produce arc light, smoke, or pollution, making it safe, green, and eco-friendly.
FAQ
Q1: How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
Q2: How do you control the quality?
A: (1)Material inspection--Check the material surface and rough dimensions.
(2)Production first inspection--To ensure the critical dimension in mass production.
(3)Sampling inspection--Check the quality before sending it to the warehouse.
Q3: When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may require more time. Please place your order based on our delivery timeline.
Q4. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
Q5: What are your usual terms of payment?
A: T/T, Paypal.
