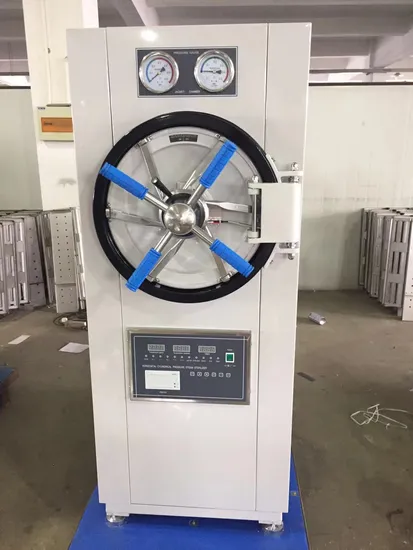

Horizontal Pulse Vacuum Steam Sterilizer Autoclave

Product Description

Horizontal Pressure Steam Sterilizer
Microcomputer Control Product Paramenters

Use
The horizontal autoclave, which adopte the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics. scientific research institutes and other organizations to sterilize surgical instrumenl5, fabric glassed, and the culture media etc.
Characters:
♦ Automatially controlled the sterilizing process, easy lo operate
♦ With drying function, suitable for the medical dressing drying
♦ With over-temperature, over-pressure auto-protect.
♦ The door can not be open until the pressure in the chamber 1s reduced to 0.0271\IIPa. And the unit can not be started on if the door doesn't close well.
♦ The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank
♦ Automatically cut off the power if the water-lack happened, and alarm at the meanwhile.
♦ The chamber of the sterilizer is made of stainless steel.
♦ With printer.
Technical data:

	CK-150YDB	CK-200YDB	CK-280YDB
Sterilizing chamber volume	150L φ440×1000mm	200L φ515×1000mm	280L φ600×1000mm
Working Pressure	0.22 MPa
Working Temperature	134ºC
Adjustment of temperature	40ºC - 134ºC
Time of sterilization	0-99 min
Time of drying	0-99 min
Heat average	≤± 2ºC
Power	9KW/380V 50Hz	9KW/380V 50Hz	12KW/380V 50Hz
Dimension(mm)	1400×650×1600	1400×750×1700	1520×910×1900
Transport dimension(mm)	1560×820×1820	1560×910×1880	1680×1080×2100
G.W/N.W	430/340 KG	436/350 KG	570/462 KG
