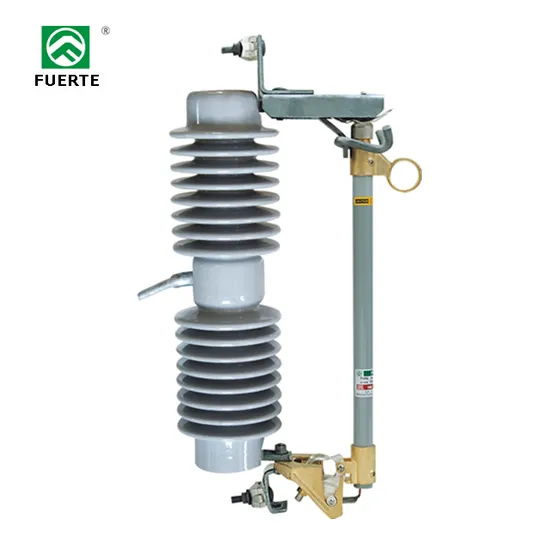

High Voltage 33-36kv Outdoor Fuse Cutout for Overhead Lines

High Voltage 33-36kv Outdoor Fuse Cutout for Overhead Lines

US$32.00-38.00 100 Pieces (MOQ)

Basic Info.

Model NO.
FSC-21
Usage
Overhead Distribuation Line
Fusing Speed
High Speed
Fusing Device
Fuse Link
Standard
IEC60282-2, ANSI C37.41, ANSI C37.42
Certificate
ISO, Kema
Accessories
NEMA Bracket, Fuse Link, Arc Shortening Rod
Application
Over Head Distribution Line
Rated Voltage
33~36kv
Rated Current
100A, 200A, 300A
Sample
Provided
OEM Service
Provided
Fuse Base Material
Porcelain
Function
Over-Current Protection
Transport Package
Carton, Pallet
Specification
38.5*34.5*11cm
Trademark
FUERTE
Origin
Zhejiang, China
HS Code
85351000
Production Capacity
50000 PCS/Month

Product Description

Product Description
* Brief instruction
Drop out fuse cutout can is for use of outdoor medium voltage and high voltage alternative current system, which mainly protects transformer and distribution power line from short circuit and overload.
It drops down in base while fuse link melted.
Standard type fuse cutout can function like overhead disconnect switch 300 amp.
Disconnect blade is also available for this purpose.
Products are completely in accordance with IEC60282-2,ANSI C37.41,ANSI C37.42 latest standard.

* Design Highlights
√Fuse carrier
Made of epoxy glass fiber lined with uv resistant coating and copper arc-extinguishing material, the fuse tube does not absorb moisture or deform. Moreover, with strong uv resistance, thick arc-extinguishing layer and good arc-extinguishing performance, it has a long service life. In addition, the upper part of the fuse tube can prevent water intrusion, so as to ensure no water in the fuse tube.
Due to the interchangeability, the fuse carrier can be labeled with noctilucent light for reflecting light when illuminating with light at night, so it is easier to know the fuse cutout's service position, which facilitates the operation of workers at night and reduces labor intensity.
The the fuse carrier adopts single exhaust (downward) with a solid cap to avoid the threat of free gas to the circuit, unnecessary mechanical damage or short circuit. At the same time, the performance of short-circuit current and interruption of the fuse can be greatly improved.
√Contact
Pure conductive copper and highly elastic conductive copper alloy are used for silver plating, compaction design is adopted in the upper contact, the stainless steel spring provides high contact pressure and silver-to-silver contact is adopted in both moving and static contacts. The lower contact is made of cast copper and sliver plating, and a pair of current paths is provided, whose conductor connector is silver plated with highly elastic conductive scale copper. On the back of the connector, alloy shrapnel that is high temperature resistant is installed to provide stable and reliable elastic support for the contact state of the connector, which can fully withstand the thermal effect of short-circuit current. In addition, to ensure a good contact condition, the thickness of silver plating on contacts and conductor surface should be more than 2μm. .
√Porcelain & Polymer insulator body
Porcelain insulator base: made of bird-proof ceramic, adopted advanced casting technology and using cement from the United States, which can prevent broken of porcelain body caused by thermal expansion and contraction.
Silicone rubber insulator base: silicone rubber material has already passed 1,000 hours of salt spray test. Product Parameters
Electrical characteristicsSpecificationUnit
Voltage33~36KV
Current100/200/300A
Frequency50/60Hz
Power frequency withstand voltage to earth (1 min)70KV
Power frequency withstand voltage phase to phase (1 min)80KV
Impulse voltage to earth170KV
Impulse voltage phase to phase180KV
Breaking current6KA
Creepage distance:720mm
Spare parts
Mounting bracketwith/without
Arc shortening rodwith/without
Arc distinguish chamberwith/without
Fuse linkwithout
Material
Copper content for brassBrass (60~60%)
Conductive parts materialCopper with silver plated/Copper with tin plate
InsulatorPorcelain/Polymer
Fuse tubeFiber glass
Package
Qty/package1pc/carton
Service conditions
Environment maximum temperature40ºC
Pollution level II
Altitude≤1000Meter
StandardIEC60282-2
Product Advantage
Main Products
Company Profile
Zhejiang Fuerte Electrical Apparatus Co., Ltd. (Formerly Wenzhou Fuerte Electrical Apparatus Co., Ltd. ) was founded in 1985, our company employs 220 staffs, and have down site area 19881m2, covered area 36216m2.
As one of the earliest professional manufacturers in China for fuse cutouts, surge arresters, isolating switches, porcelain and polymer insulator and other electrical protection apparatus in China, we've passed ISO certificate (by DEKRA Certification GmbH Stuttgart) and fuse cutouts are tested by CESI, Italy and KEMA, Surge arrester are tested by KEMA also. The scope of business activities includes the production and sale of these electric apparatus.
Our company has strong research and development capabilities for customization requirements for our customers. We've designed more than one hundred designs of fuse cutout for customers from different countries; Such as Kenya, South Africa, Morocco, Thailand, Korea, Pakistan, Saudi Arabia, The USA, etc. And same as Surge arrester, isolating switch, porcelain & polymer insulator, and electrical fittings. We believe we can give you most suitable products for your installation request and match the specification of your country.
Our company -- More than 40 years of production experience;
New plant covers an area of 36216m2; employs 220 staffs;
Continuous improvement and perfection of products;
10~38KV voltage level products selection;
100~300A current level products selection;
High productivity, large spare parts inventory;
CESI certificate and more laboratory test certification;
Sample order available.
Certifications
Exhibition
FAQ
Q: How about the performance of your surge arresters?
A: We use reliable material from our supplier and each batch material have qulified certificate. And the assemblied product also 100% tested before package.
Q: Can we customize the surge arresters according to our drawing/design?
A: Yes, we accept customized order, but the quantity needs to reach at 1000pcs if the mold fee are beared by you. For mold fee beared by us, the quantity need to reach to a large one.
Q: What kind of certificate of the surge arrester you have?
A: We have KEMA etc.
Q: What is MOQ of the surge arrester?
A: The MOQ of the surge arrester is 1 piece for sample.
Q: What is the warranty for the surge arrester?
A: For the all surge arrester, we offer 2 years warranty for free.
Q: What is the terms of payment?
A: T/T, L/C,western union, trade assurance or cash; 30% for deposit, the balance 70% before shipment.
Q: What is the delivery time?
A: 3 work days with stock after receiving the payment. No stock, 20 work days after receiving the payment.
