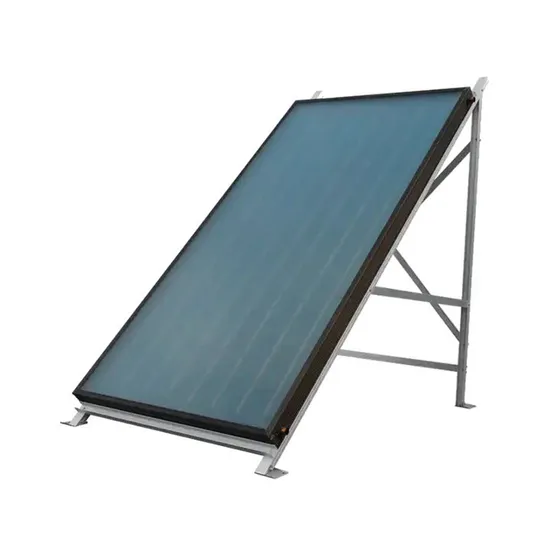

Experienced Manufacturer of Solar Energy Flat Panel Collector with CE Certificate
| US$99.00-129.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
2000*1000*80mm
Certification
API, ISO, CB, CE
Concentrating
Yes
Working Temperature Range
Medium Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Copper
Transport Package
Wooden Box
Specification
2000*1000*80mm
Trademark
MLSUN
Origin
China
Production Capacity
300000 Sets/Year
Packaging & Delivery
Package Size
200.00cm * 100.00cm * 8.00cm
Package Gross Weight
35.000kg
Product Description
We produce High-Pressure Flat Plate solar thermal collectors. We also provide OEM manufacture for customer's Brand/LOGO. Technical specifications for High-Pressure (Flat Plate) solar collectors.| Flat Plate Collector | 2000×1000×80 mm | 2000×1250×80 mm |
| Area | 2 m2 | 2.5 m2 |
| Weight | 35 kg | 39 kg |
| Absorber coating | Blue coating / Black coating | Blue coating / Black coating |
| Pipe material | Copper TP2 | Copper TP2 |
| Header pipe | Copper Φ22 mm | Copper Φ22 mm |
| Riser pipe | Copper Φ10 mm | Copper Φ10 mm |
| Connector | 3/4" | 3/4" |
| Cover | Low iron texture tempered glass EPDM | Low iron texture tempered glass EPDM |
| Frame | Anodized aluminum alloy | Anodized aluminum alloy |
| Working fluid | Glycol | Glycol |
| Max. working pressure | 10 bar | 10 bar |
| Max. working temperature | 200 ºC | 200 ºC |
