High Speed Jerry Can 20 Liter Extrusion Blow Molding Machine for 25 Litre Plastic Jerry Can Production Blow Molding Machine

High Speed Jerry Can 20 Liter Extrusion Blow Molding Machine for 25 Litre Plastic Jerry Can Production Blow Molding Machine

US$18,000.00-45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LSN90S
Raw Material
HDPE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
2 Years Free Parts
Key Selling Points
High Productivity
Screw Diameter
90 mm
Material
PE,PP,PV,PVC,PA
Transport Package
Wooden Box
Specification
20L
Trademark
LONGSN
Origin
Zhangjiagang China
Production Capacity
90-180 Bottle/Hour(Depend on The Bottle)

Product Description

Product Description

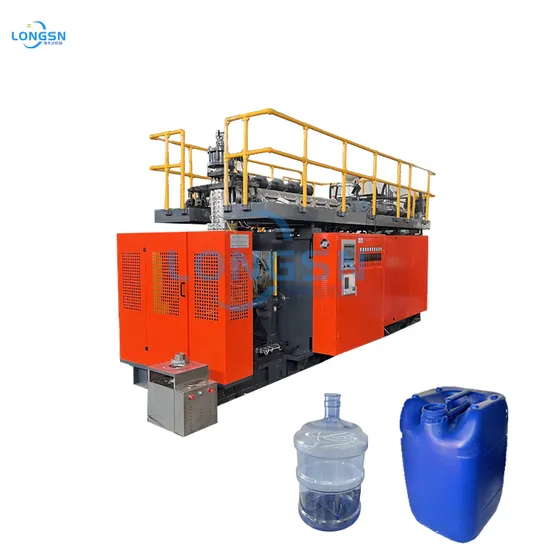

High speed jerry can 20 liter extrusion blow molding machine for 25 litre plastic jerry can production blow molding machine
The LSN series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
Detailed Photos
Product Parameters
Parameters Units LSN90S LSN100D
Material PE,PP,PV,PVC,PA PE,PP,PV,PVC,PA
Number of die head set 1,2,3,4 1,2,3,4
Max Container capacity 30L 30L
Screw diameter mm 90 100
Screw L/D ratio - 28 28
(50HZ)Screw rpm(50hz) r/min 10-70 10-60
(PE)Extrusion capacity per hour kg/h 160 200
Number of heaters - 4 5
Opening stoke mm 900 900
Platen size mm 500*540 500*540
Clamping stoke mm 450-950 450-950
Clamping force KN 170 170
Dry cycle time s 6 9
Cooling water pressure Mpa 0.2-0.3 0.2-0.3
Cooling water consumption L/min 40 60
Air pressure Mpa 0.8 0.8
Compressed air comsumption m3/min 4 6
Machine dimension(L*W*H) mm 5000*2900*3950 5200*4700*4000
Machine net weight T 9.5 16
Extruder heating power kw 22 27
Power of die heating zone kw 16 16
Hydraulic motor kw 18.5 18.5
Total power kw 106 121

Certifications
Company Profile
FAQ
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.Q2:What is your advantage?A2:Competitive price , Excellent technical support ,24h online serviceQ3:When can I get my machines after I paid?A3:We will arrange delivery on time,act according to the contract.Q4:What's your guarantee or the warranty of the quality if we buy your machines?A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 yearsQ5:How can I install my machine when it arrives?A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
