Full Range of Size GRP Pipe / FRP Pipe FRP Fiberglass Reinforced Pipe GRP Pipe Fiberglass Pipe Price

Product Description

Full Range of Size GRP Pipe / FRP Pipe FRP Fiberglass Reinforced Pipe GRP Pipe Fiberglass Pipe Price
Product Description

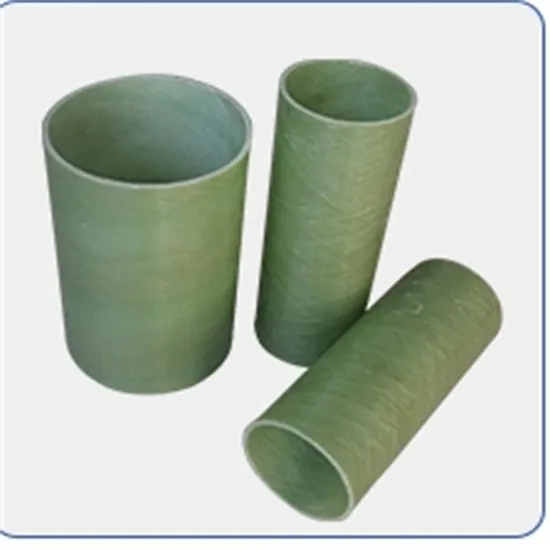

Ruichuan GRP pipe is manufactured in accordance with international standard using Helical FILAMENT winding process and Continuous FILAMENT winding process on computer controlled machines.Helical FILAMENT winding process (Bell and spigot joints)GRP Pipe is manufactured using the helical (reciprocal) filament winding process by which impregnated glass fiber reinforcement with resin are applied onto a precision steel mandrel in a prescribed pattern. Repeated application of wetted fibers results in a multi-layered structural wall construction of the required thickness.Continuous FILAMENT winding process (Coupling joints)GRP Pipe is manufactured on a continuous filament winding machine. This machine consists of a mandrel composed of a helical wound continuous steel band, supported by beams forming a cylindrical shape. As the formed mandrel turns creating a multi-layered structural wall of the required thickness.
Product Parameters

the parameters of technical pipe
DN	0.6MPa	1.0MPa	1.6MPa	2.5MPa	A
	t(mm)	t(mm)	t(mm)	t(mm)
25	5	5	5	5	1500
32	5	5	5	5	1500
40	5	5	5	5	1500
50	5	5	5	5	1500
65	5	5	5	7	1500
80	5	5	5	7	1500
100	5	5	5.5	7	1500
125	5	5	6	8	1500
150	5	5.5	6	9	1500
200	5.5	6	7.5	12	3000
250	6	6.5	8.5	14	3000
300	6.5	8	10	15	3000
350	6.5	9	12	17	3000
400	7	9	13	19	3000
450	7	10	14	21	3000
500	7.5	10	15	22	3000
600	8.5	13	18	25	6000
700	9	14	21	29	6000
800	9.5	15	23	33	6000
900	10.5	17	26	38	6000
1000	12	18	29	42	6000
1200	13				6000
1400	16				6000
1500	17				6000
1600	18				6000
1800	20				6000
2000	23				6000
2200	24				6000
2500	27.5				6000
2600	28.6				6000
2800	30.2				6000
3000	32.5				6000
3400	35.9				6000
3600	37.6				6000
4000	39.8				6000

Our Advantages
GRP (FRP) or Dual laminate piping systems:1.Cooling water GRP piping systems2.Process GRP piping systems 3.Auxiliary GRP piping systems4.Recirculation piping systems5.Underground feeding GRP piping systemsApplications:1.Chemical processing2.Ship building3.Flue gas desulphurisation4.Fire fighting5.Food processing6.Water treatment7.Water purification8.Sewage treatment
Our office

Certifications

Installation Instructions
Company Profile
Ruichuan is composed of Hebei Ruichuan FRP Co., Ltd., Hebei Ruichuan Chemical Equipment Manufacturing Co., Ltd., Ruichuan (Ningxia) Environmental Protection Technology Co., Ltd. And Jiangxi Ruichuan FRP Co., Ltd. It is a modern comprehensive equipment manufacturing enterprise specializing in the production of FRP products.
Our main products:
FRP tank(vertical,horizontal and field wound FRP tanks),
FRP pipe and fitting,
FRP tower and flue and chimney,
PTFE lined steel tank,
HDPE/PO lined steel tank,
HDPE/PO lined steel fitting,
PTFE lined steel fitting,
Glass lined steel fitting,
Stainless steel tank
