Hsg Factory for Sale Heavy Duty Industrial Pipe Metal Pipe Laser Cutting Machine Fiber Optic Laser Tube Cutting Machine

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is the introduction of a type of Heavy-duty Tube Laser Cutting Machine:

HI-TECH ENTERPRISE IN CHINA HSGLaser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment,
is dedicated to serve global customers with intelligent metal forming solutions. Serve 100+ Countries and Regions HSG Laser has built 4 standardized manufacturing bases in China, 10 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 221+ R&D personnel
and can produce 5000 sets each year by right of 80000m2 production area. Professional R&D Team Our R&D team values high-power machines and key spare parts. Until now, they have developed industry-leading
3D fifive-axis bevel cutting, P30 ultra-high-power autofocus cutting head, four intelligent digital chucks, Alpha T
and HSG-X9000 bus system and HSG-XMT multi-touch operating system.
Large Variety in Fiber Laser MachinesHSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to
be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser
cutting machine, bending machine, welding machine and automation equipment.

Product Description

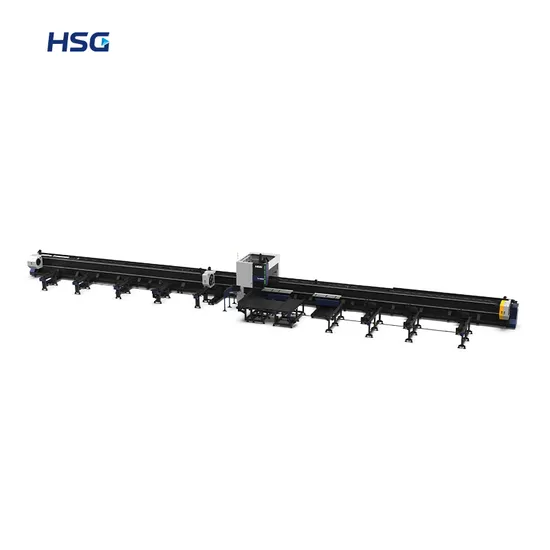

Heavy-duty Tube Laser Cutting Machine 3000-12000W

* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory.
All testing results and experimental data shall be subject to real machine.

Basic Information

< Labor-saving Configurations >

( Multi-tube Automatic Loading Device )

Several heavy tubes are usually loaded synchronously to reduce labor intensity and make production more efficient.


( Automatic Unloading Equipment )

Two follow-up turning plates are available to convey ≤6000mm heavy tube stably from high to low while unloading,
so that tube surface is well protected.
< Chuck Clamping Technology >

For new TX, chuck C3 and C4 are combined as one and can rotate or move synchronously but control its claws opening
and closing independently. Except for clamping, tube supporting is also available for the combined chuck,
remedying the common weakness of two, three and four chucks.
Correction of tube deviation
Both tube clamping and supporting
Our Advantages

< HSG-X CNC System >

* Bus refers to data transmission mode via on-site bus control system.

< Optional 3D Five-axis Cutting Head, 45° Bevel >
Self-developed by HSG Laser
Laser path reshaping technology
Modular structure for ease of maintenance
Swingable head outfitted with the function of collision prevention
Take control of laser focus thanks to its fully automated servo motor

Specification

Applications
HSG Fiber Laser Cutting Machines are widely used in Elevator, Bridge & Tunnel, Conveyor Pipe, Heavy-industrial Machinery, Steel Buildings etc.
Technical Parameter

Model	TX7026	TX9036	TX12036
Power	3000-6600W	6600-12000W
X/Y-axis Positioning Accuracy	±0.03mm/m	±0.05mm/m
X/Y-axis Repositioning Accuracy	±0.03mm	±0.05mm
No-load Speed	100m/min	60m/min
Acceleration	1.0G	0.6G
Rotating Speed of Chucks	100r/min	60r/min
Cutting Capacity of Round Tube	Φ15-Φ260mm	Φ40-Φ360mm
Cutting Capacity of Square Tube	15*15mm-180*180mm	40*40-250*250mm
Length of Tube	7000mm	9000mm	12000mm
Weight of Single Tube	400kg	800kg	1200kg
Tailing	0
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.

Sample Display

Certifications


Visit & Exhibition


Test & Packing
QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument,
Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.





PROFESSIONAL AFTER-SALES SERVICE


Δ One-year Warranty

All unit components are warranted for 1-year, except items listed in the Exclusions section below.
Our after-sales engineer or local agent will supply new or remanufactured component of equal or better quality to replace the failed one.

Δ Exclusions

Unit components subjected to normal wear during the Warranty Period are not covered by warranty, including:

1. Nozzle 2. Protective lens 3. Ceramic ring

Machine breakdown caused by part handling/misuse or corrosion due to exposure to caustic materials, voids the warranty.

Component failure caused by customer misuse/abuse of the unit (e.g. using incompatible materials or wrong axial position settings), voids the warranty.
