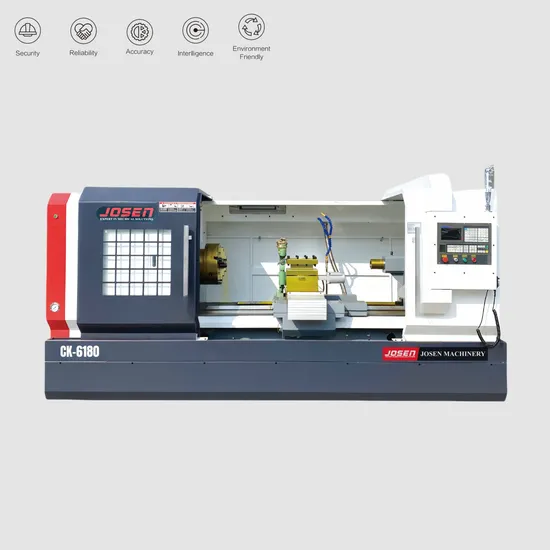

Josen Ck6180 Series High Precision, High Power, High Rigidity CNC Lathe

Product Description

JOSEN CK6180 series high precision, high power, high rigidity CNC lathe
Product Description
Basic Info

No.	Item	QTY
1	630 Three jaw chuck	1set
2	Double-ended spanner	1set
3	Hexagonal spanner	1set
4	Ground screws	1set
5	Screwdriver	1set
6	Certificate of conformity	1pc
7	Packing list	1pc
8	Operating instructions	1pc
9	Machine warranty card	1pc

Product Specification

Item		Specification
Processing range	Maximum swivelling diameter on the bed	800mm
	Maximum swivelling diameter through the slide	480 mm
	Maximum centre distance	1500/2000/3000 mm
	Maximum travel in X-axis (transverse)	420 mm
	Maximum stroke of Z-axis (transverse)	1500/2000/3000 mm
	Guideway width	600mm
	X/Z direction ballscrew screws	3208/6310
	Rapid traverse	X direction 6m/min Z direction 8m/min
	Machining accuracy	IT7-IT8
Spindle	Spindle head type	C-11
	Spindle bore taper/spindle through-hole	Metric 1:20/¢105mm
	Spindle speed	30-835
	Chuck size	Four-jaw chuck ¢630mm
Accuracy	Positioning accuracy	X-axis (lateral) ≤ 0.015 mm
		Z-axis ( lateral ) ≤ 0.02 mm
	Repeatability	X-axis (lateral) ≤ 0.01 mm
		Z-axis (lateral) ≤0.015 mm
Tool holder	Form / Square tool shank specification	Four-station tool holder 280*280/tool square 32X32mm
Turret	Tailstock sleeve diameter/stroke	120 mm /250 mm
	Taper hole of tailstock centre	MT6#
Motor	Main motor power	45KW motor (external)
	X/Z axis motor power	10/18NM
Machine weight/overall dimensions (1.5 metre machine)		5300KG/3650X2050X1850mm

CK-618 three-speed frequency conversion segmented variable-speed CNC lathe configuration list

NO	Item	Model	Manufacturer
1	Control system	GSK980TB3i	GSK
2	X-axis screw	3208	Xinxing/Sanheisheng
3	Z-axis screw	6310	Xinxing/Sanheisheng
4	Main motor	11K Motor	Domestic
5	X/Z servo motor	10/18 NM	Domestic
6	Coupling	/	Domestic
7	Spindle bearings	/	Harbin/Wafangdian
8	Chuck	¢630 four-jaw	Wafangdian
9	Motorised tool holders	Four-station	Hongda
10	Electrical control elements	/ /	Delixi
11	Automatic lubrication system	Gear pump	Hurun
12	Electric cooling pumps	250W	Weisen
13	Mobile hand pulse	With shaft selection, multiplier	Domestic
14	Work lamps	24V	Wuxi
15	Transformers	/Gear pumps	Domestic
16	Machine tool guards	Standard	Homemade

1. Machine features:
The castings of this machine tool are all made of resin sand castings, integrated floor-standing whole bed, and after the second artificial aging treatment, good stability, high strength, stable and reliable precision.
The guide rail of this machine tool is quenched by ultra-audio quenching and then processed by precision grinding, with good precision and accuracy retention.
The machine adopts enlarged drag plate, which makes the rigidity of the drag plate more excellent and the cutting more stable and powerful.
The machine adopts gear spindle structure, through hole ¢105mm, good rigidity. It is equipped with high-precision domestic or imported bearings.
The spindle of this machine has been dynamically balanced, and the finish of the parts has been significantly improved.
The spindle of this machine tool is selected, the important parts have been strengthened treatment, using well-known brand P4 grade spindle bearings and independent oil pump for oil lubrication, the whole set of spindles assembled under constant temperature conditions, are required to pass the computer level calibration and run-in test, so as to make the whole set of spindles have a long service life and high reliability.
The ball screws of X/Z axis transmission of this machine tool adopt P4 grade nut preloaded ball screws provided by professional manufacturers, and the bearings at both ends of the ball screws adopt P4 grade 60°contact angle paired combinations of ball screw bearings, and the ball screws of both axes are pre-tensioned, and are connected to the feed servo motors with flexible couplings, resulting in strong rigidity of the transmission and stable and reliable precision.
The lubrication system of the machine tool adopts automatic centralised oil lubrication system, which can ensure that any lubrication part can be fully lubricated.
2. Use:
This CNC lathe is a high-quality, high-precision, high-performance technology-intensive product elaborately designed and manufactured for you by our company with advanced design ideas and engineering technology, featuring the advantages of good rigidity, high precision, high torque, large machining range, easy operation and maintenance, and reasonable price, etc. The machine is widely used in steel, casting, and other industries. The machine tool is widely used in the machining of steel, cast iron, copper, aluminium and other parts. With the use of electric tool holder, it can realize automatic continuous turning of parts such as in-disk, in-axis, threaded, and conical parts, as well as the machining of drilling, reaming, and reaming holes. Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
