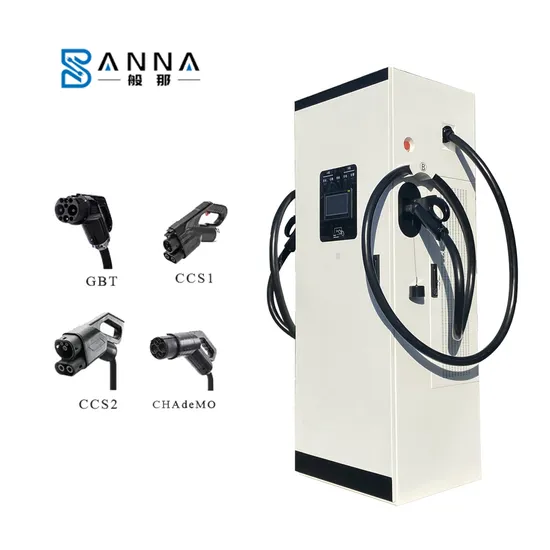

120kw 150kw 180kw 240kw 3DC Gun DC Charger Gbt Chademo CCS2 EV Charger Station

120kw 150kw 180kw 240kw 3DC Gun DC Charger Gbt Chademo CCS2 EV Charger Station

US$2,450.00-7,230.00 1 Piece (MOQ)

Basic Info.

Model NO.
BNEVAM2
Location
Private Use
Number of Charging Interfaces
One Pile with One Charge
Start Mode
Credit Card Payment, Mobile Remote Operation, RFID Authentic
Rated Current
DC250A+DC250A
Output Power
20kw/30kw/40kw/60kw/80kw/120kw/160kw
Input Voltage
304~456V AC
Payment Method
RFID Card/Phone APP with Backend
Certificate
CE/TUV/RoHS
Communication Protocol
Ocpp1.6j
Product Name
EV Charger Station
Type
Type1/Type2
Product Dimension(W*D*H)
700*400*1750mm
Multiple Protection
Overload Protection, Short Circuit Protection
Protection
Over/Under Temperature Protection
Charger V.S. Backend
Ethernet/GPRS/4G Communication
LED Indicator
Green/Blue/Red Color for Different States
Warranty
1 Year
Emergency Stop Button
Yes
Transport Package
Cardboard Box
Trademark
BANNA
Origin
China
HS Code
8504409999
Production Capacity
200

Packaging & Delivery

Package Size
76.00cm * 40.00cm * 190.00cm
Package Gross Weight
320.000kg

Product Description

Banna DC Charging Station 60kw/80kw/120kw/160kw EV Charging Station for Electric Cars Vehicles with Ocpp
Specification Model 160kW
AC Nominal Input Phases/Lines 3 phase+ neutral + PE
Voltage 304~456V AC
Frequency 45-65Hz
Output Power 160kW
connector GBT+GBT
DC Voltage 50VDC-1000VDC
MAX Current DC250A+DC250A
Cable Length 5m
Electrical Parameter Power Factor ≥0.99
THD Value ≤5%
Stable Voltage Accuracy ≤±0.5%
Stable Current Accuracy ≤±1%
Efficiency ≥94%
Structure Design Module Number 8*20kW
Installation Method Vertical installation of ground
LED Indicator Green/Blue/Red color for different states
Display One 7'' Daylight readable Color Touch Screen
Emergency Stop Button Yes
Payment Method RFID Card/Phone APP with backend
Communication Charger v.s. Backend Ethernet/GPRS/4G communication
Communication Protocol OCPP1.6J
Environmental index Operating Temperature -30ºC ~ +50ºC
Working Humidity 5% ~ 95% no condensation
Working Altitude ≤2000m
Protection Grade IP54
Application Site Indoor/Outdoor
Cooling Method The fan cooling
Security Protection Multiple Protection Over/Under voltage protection,
Overload protection, Short circuit protection, Over/Under temperature protection,
Grounding protection, Surge protection,
Leakage protection
Warranty 1 year
Package Information Product Dimension(W*D*H) 700*400*1750mm
Net Weight 320kg
External Packing Wooden case

Hebei Banna Wisdom Technology Co., Ltd. established in 2005, Located in 501,Unit 4,Building 6,NO.695,Tianshan South
Street, Hi-Tech District, Shijiazhuang, China. Is a specialized research & development, production, sales, enterprise of new
vehicle energy charging products. Our main products include AC/DC charging stations, portable chargers, EV plugs, sockets,
extension cables and connectors. Our facility covers an area of about ten-thousand square meters. We have been awarded
with the ISO9001 quality management system, ISO14001 environmental management system, ISO45001 occupational health
and safety management system designations as well as certificated by designation of CE and RoHS of the European Union as
well as high-tech enterprise certifications.
As a production factory, we have our own R&D and production capacity, which can well meet the needs of customer product
customization. We have been selling our products for more than 10 years, and our products have been sold well in Europe,
the United States, the Middle East and Southeast Asia, and have received favorable comments from our customers.
Q1: How can l place my order?
A1: You can order by yourself or contact our sales personnel who can provide you witha full quotation and understanding
of your needs. We have an efficient sales team whowill reply to you in good time and who strive to give you the best service.
Q2: How much do you charge for shipping?
A2: Each product has been weighed and is priced according to the carrier's chargeswe do not profit on the shipping costs.
Q3: What is your sample policy?
A3: We can supply a sample if we have ready products in stock, but customers need topay sample and delivery costs. Any
information needed, please contact our sales team.
Q4: What payment methods do you accept?
A4: We accept all payment methods include PayPal, T/T, Credit Card, AlibabaAssurance, Western Union and bank transfers.
Please contact us for more details.
Q5: What if my item arrives damaged or is incorrect?
A5: On the unfortunate case that this happens, please contact us as soon as youreceive the item. Please provide your name,
order number, and issue so that we canget it resolved quickly for you.
