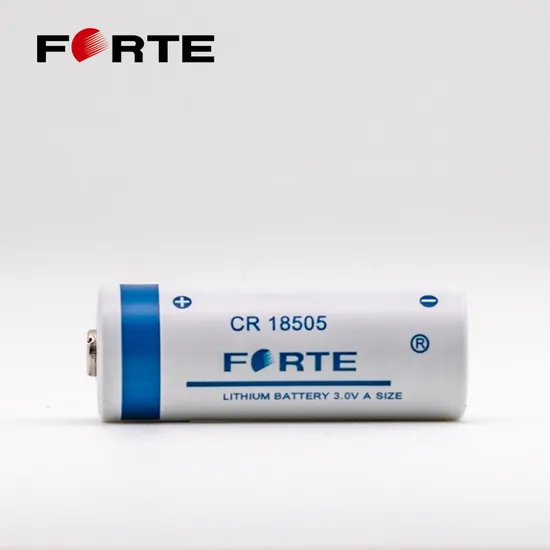

3.0V Non-Rechargeable Primay Limno2 Battery Cr18505 for Water Metering

Product Description

Model: CR18505 A size
Noninal Voltage(V): 3.0 V
Termination Voltage(V): 2.0V
Noninal Capacity(mAh): 2500mAh
Max. Constant current: 2000mA
Max. Pulse current: 3000mA
Size: ø 18.5*50.5H
Weight: 35g
Workable temp.: -40° C-+85° C
Applications:
1. Memory backup: CMOS memory, RTC(real time clock) and computer backup.
2. AMR utility meters: Electricity meter, gas meter and water meter etc.
3. Wireless alarm sensors: Smoke alarm systems, temperature monitors etc.
4. Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
5. Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
6. Electronics toll tags: Toll gates
7. Other electronics: Radio communication, night vision equipment, tracking and positioning systems etc.
Advantages:
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 1% per year at 25° C)

Model	Cell Size Ref	Nominal Voltage (V)	Nominal Capacity (mAh)	Max. constant Current (mA)	Max pulse Current (mA)	Dimension (mm)	Weight (g)
CR14250	1/2AA	3.0	600	500	1500	Φ14.5*25.0	10
CR14335	2/3AA	3.0	800	1000	2000	Φ14.5*33.5	14
CR14505	AA	3.0	1400	1500	3000	Φ14.5*50.5	21
CR2		3.0	850	1000	2000	Φ15.5*27.5	13
CR123A		3.0	1400	1500	3000	Φ17.0*33.5	20
CR17450		3.0	2000	1500	3000	Φ17.0*45.5	26
CR17505		3.0	2300	1500	3000	Φ17.0*50.5	30
CR18505	A	3.0	2500	2000	3000	Φ18.5*50.5	35
CR26500	C	3.0	5400	2000	3000	Φ26.0*50.5	62
CR34615	D	3.0	12000	2000	3000	Φ34.0*61.5	125
CR-P2		6.0	1400	1500	3000	34.0*19.5*35.8	42
2CR5		6.0	1400	1500	3000	17.0*26.0*48.8	43
