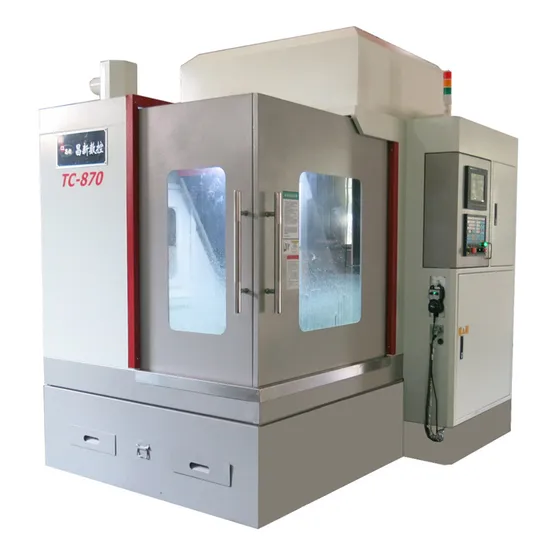

Ce Certificate CNC Milling Machine Molds Engraving Machine for Metal Aluminum or Brass Molds Tc-870
| US$20,437.96-23,357.66 | 1 set (MOQ) |
Basic Info.
Model NO.
TC-870
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.003-0.005
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Packing
Specification
2400*2350*2700mm
Trademark
Chansin
Origin
China
HS Code
8479899990
Production Capacity
1000sets/Year
Product Description
CE certificate CNC milling machine molds engraving machine for metal Aluminum or Brass molds TC-870
Specifications
| Table | Size | mm | 850*670 |
| Travel of 3 axis(X/Y/Z) | mm | 800/700/300 | |
| Max table load | kg | 300 | |
| T-slot | Number*width*space | mm | 5*14T*85 |
| Spindle (direct drive) | Spindle taper | Taiwan Electric Spindle ER25 | |
| Spindle nose to table | mm | 120-470 | |
| Max spindle speed | rpm | 18000 | |
| Spindle Motor power | kw | 5.5 | |
| Accyracy | Positioning accuracy | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| Axis motor | Power of X/Y/Z | kw | 0.85/0.85/0.85 |
| Feeding Speed | Rapid feed of X/Y/Z | mm/min | 15000/15000/15000 |
| Cutting feed of X/Y/Z | mm/min | 12000 | |
| Parameters | Weight | kg | 3500 |
| Dimension(L*W*H) | mm | 2400*2350*2700mm | |
| Power | v | 380/415 | |
| Bearing | Japan NSK or German FAG optional | ||
| Linear guide rail and ball screw | Taiwan Hiwin | ||
| Coupling | German BK3 SW*J | ||
| Main electrical accessories | German Schneider, Merlin Gerin | ||
| Circuit breakers and relays | German Schneider, Merlin Gerin | ||
| Working LED lamp | Taiwan | ||
| Hand control electronic hand wheel | Taiwan | ||
| Tool Magazine | optional | ||
| Control System | Taiwan Syntec, Japan Mitsubishi, Japan Fanu , Germany Siemens optional | ||
| Motor | Japan YASKAWA /Mitsubishi /Fanuc/Siemens Servo Motor | ||
| Accessory | 1.Tool box (1 set) 2.Tool auto-checking instrument(1 set) 3.vise and Lock knife seat (1 set) 4.High pressure spray gun(1 pcs) 5.Chip conveyor 6.Oil cooling station 7.Collets (4 pcs) 8.Hand Wheel(1 pcs) 9.Machine operating manual 10.Operation and programming manual 11.Servo Motor and Controller Manual | ||
Payment Term:
Payment:30% deposit,the balance will be paid before shipping.
Delivery:
20-30 days after received the deposit payment.
Remarks:
1.Warranty:One year free warranty and life time maintenance.
2.Loading port: Shenzhen/Guangzhou
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
4th/5th axis rotary table optional
