Product Description

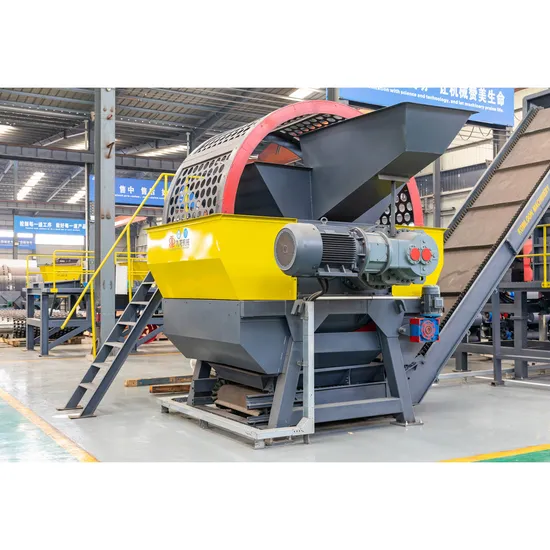

Double shaft waste tyre shredder
JLTS twin shaft tire shredder , equipped Cr12mov/H13K knives, suits for shredding waste tire contents steel, JLTS1000/1200/1500/1900/2600 can process scrap car tire, truck tire, ORT tires which diameter, waste tire steel drawing machine pull off steel in tire sidewall in advance for decreasing the wearing of tire shredder knives, JLTS tire preliminary shredder has two rotors built into the machine that rotate at low speeds and high torques, shredding size controlled by screens(standard size: 50X50mm), screen rotary around shredding chamber, oversize material turn back into shredding chamber. JLTS twin shaft shredder also suitable for plastic waste, wood processing scrap, medical waste, paper, cardboard or almost any type of waste, which need uniformed end size, materials can be dumped into the hopper and processed with no further operator interaction.
Features:
Low Speed / High Torque Design Easy Accessibility Low RPM / Low Noise Large Infeed Hopper High Output "Torsion Point" Cutting Rotor
Severe Duty Construction Oversized Drivetrain PLC Control Panel CE certificated Easy Access Screen

Model	JLTS1200D	JLTS1500D	JLTS2000D	JLTS2600D
Main motor	45kw+45kw	55kw+55kw	75kw+75kw	90kw+90kw/110kw+110kw
Motor brand	WN/Siemens/ABB/WEG
Gearbox	2units, planetary type, motor direct connected, gear driven
Rotor speed	8-12rpm	8-12rpm	6-8rpm	6-8rpm
Shredder chamber size (inner)	1115*1010mm	1480*1050mm	1920*1250mm	2520*1450mm
Shredder blade	Dia.530mm	Dia.530/560/600mm	Dia.560/600mm	Dia.720mm/900mm
Screen hole size	Dia.50mm-200mm
Lubrication system	With automatic oil lubricator
Dimension	3.2x2x1.9m	4x1.7x2.4m	5.5x3.5x3m	6.2x4.3x3.3m
Weight	16500kg	18000-22000kg	25000-28000kg	32000-34000kg

Packaging & Shipping
Video Center
Certifications
Company Information
KOWLOON was established since 1986, located in Zhengzhou city, which city of industrial hub of China, 30years experience on manufacturing of:
Wood processing machinery: wood pellet production line, wood shredder, wood drum chipper, wood sawdust machine, wood powder machine, rotary dryer and air flow drying machine, wood debarking machine.
Waste tire recycling machinery: tire recycling plant, industrial two shaft shredder, tire roller mill multi-purpose rasper, rubber granulator, rubber powder machine, tire cutting machine, tire steel debeader, and fiber separate machine.
By now, KOWLOON machines were exported to more than 30 countries and share market in worldwide, owns oversea distributors and after-sale service center and now still growing continuously.
FAQ
You May Have Following Questions:
Q1:Are You Trading Company or Factory?
Kowloon Machinery is a Factory with 31 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working,just feel
free to send us the picture or video to show us,we will give you solutions in 24hours.
Q5:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
